Cylinder Head for BMW 5 Series E34 525i (1990)

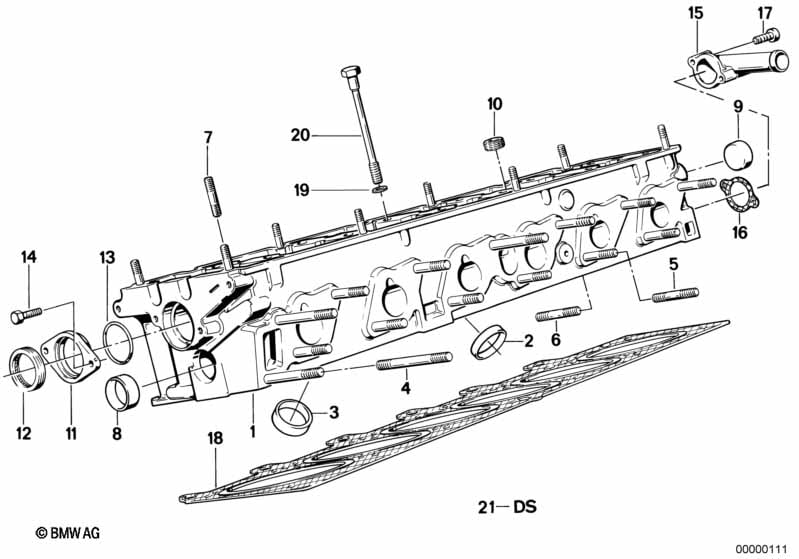

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11122141607 | ENDED | Shop at ECS Tuning | |||||
| 01 | Exch. cylinder head (sales campaign) | 1 | 11129068675 | ENDED | Shop at ECS Tuning | |||||
| 02 | Valve Seat Ring Intake | 43,55MM(+0,4) | 6 | 11121719784 | $13.16 | ENDED | Shop at ECS Tuning | |||
| 03 | Valve Seat Ring Exhaust | 6 | 11121719761 | ENDED | Shop at ECS Tuning | |||||
| 04 | Stud bolt | M8X70 | 3 | 07129908142 | $0.41 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M8X40 | X | 07129903964 | Shop at ECS Tuning | |||||
| 06 | Stud bolt | M8X42-10.9-PHR | X | 07129908157 | $0.24 | Shop at ECS Tuning | ||||
| 07 | Stud bolt | M6X40 | 8 | 07129904546 | Shop at ECS Tuning | |||||
| 08 | Cover lid | 32MM | 1 | 11121276518 | $2.15 | Shop at ECS Tuning | ||||
| 09 | Cover lid | D=40MM | 1 | 07119906069 | $4.06 | Shop at ECS Tuning | ||||
| 10 | Screw plug | M20X1,5 | 1 | 07119919025 | ENDED | Shop at ECS Tuning | ||||
| 11 | Guide cover | 1 | 11121264640 | $15.90 | Shop at ECS Tuning | |||||
| 12 | Shaft seal | 38X50X7 | 1 | 11121284154 | Shop at ECS Tuning | |||||
| 13 | O-ring | 53X2 | 1 | 11121265087 | $3.02 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M6X18-U1 | 2 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Connector | 1 | 11121264600 | $15.38 | Shop at ECS Tuning | |||||
| 16 | Gasket Asbestos Free | 1 | 11121726721 | $3.67 | Shop at ECS Tuning | |||||
| 17 | Hex bolt with washer | M6X35-U1-8.8 | 2 | 07119904589 | $0.47 | Shop at ECS Tuning | ||||
| 18 | Cylinder head gasket | 1,75MM | 1 | 11121722737 | Shop at ECS Tuning | |||||
| 18 | Cylinder head gasket | 2,05MM(+0,3) | 1 | 11121722738 | ENDED | Shop at ECS Tuning | ||||
| 19 | Washer | X | 11127550856 | $0.65 | Shop at ECS Tuning | |||||
| 20 | Set Bolt Cylinder Head | TORX | X | 11121726478 | $43.02 | Shop at ECS Tuning | ||||
| 20 | Torx bolt | X | 11121722021 | $1.83 | ENDED | Shop at ECS Tuning | ||||
| 21 | Gasket Set Cylinder Head Asbestos Free | 1 | 11129059240 | $289.80 | ENDED | Shop at ECS Tuning |
