Cylinder head cover for BMW 5 Series E34 525i (1990)

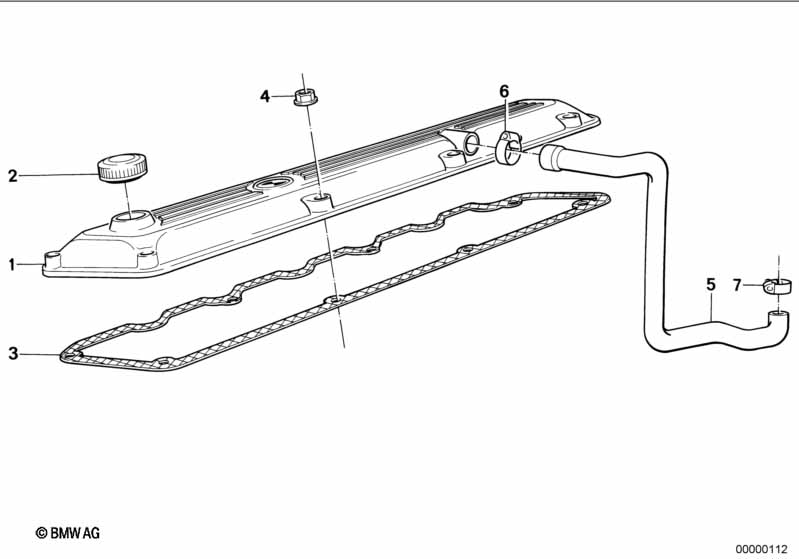

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder head cover | 1 | 11121713116 | $270.39 | ENDED | Shop at ECS Tuning | ||||
| 02 | Cap for oil filler | 1 | 11121716993 | $5.36 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 1 | 11121730271 | ENDED | Shop at ECS Tuning | |||||
| 04 | Hex nut with plate | AM6-8-ZNNIV SI | 8 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 04 | Hex nut with plate | M6 ZNT | 8 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Vent hose | 1 | 11151708801 | $15.37 | Shop at ECS Tuning | |||||
| 06 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
