Cylinder Head for BMW 7 Series E23 730 (1979)

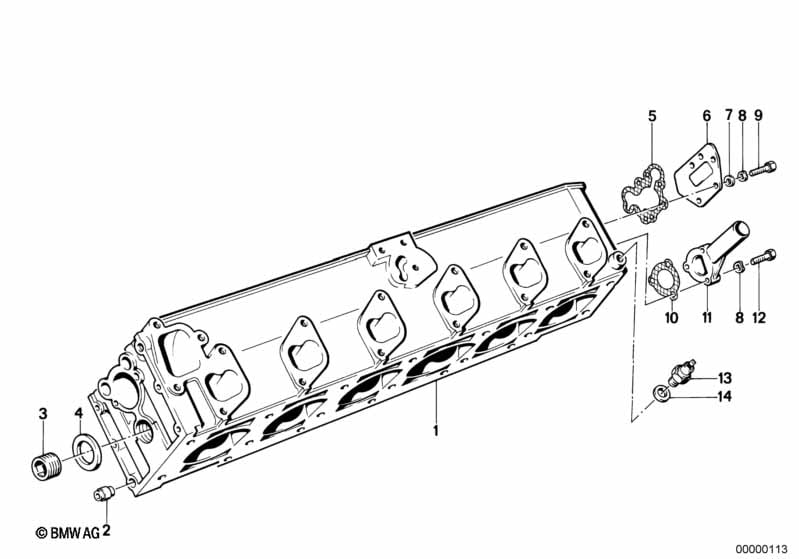

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | 1 | 11121262241 | $1819.08 | ENDED | Shop at ECS Tuning | ||||
| 02 | Dowel | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Gasket Asbestos Free | 1 | 11121726725 | $3.56 | Shop at ECS Tuning | |||||
| 06 | Cover | 1 | 11121254308 | $6.38 | Shop at ECS Tuning | |||||
| 07 | Washer-gasket | ZÜNDVERTEILER | 1 | 12110002735 | $1.71 | ENDED | Shop at ECS Tuning | |||
| 08 | Spring washer Black | B6-ZN | 9 | 05/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 08 | Washer | 5.3-140 HV-ZNS | 9 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Wave washer | B6-ZNS3 | 9 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Gasket Asbestos Free | 1 | 11151312176 | $2.35 | Shop at ECS Tuning | |||||
| 11 | Cover | 1 | 11121265038 | $55.54 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Oil pressure switch | 1 | 61311352619 | ENDED | Shop at ECS Tuning | |||||
| 14 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 730 Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the 7 Series E23 730 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11121262241).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the 7 Series E23 730 produced during 1979. These technical specifications ensure that parts like the Cylinder Head (11121262241) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the 7 Series E23 730, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11121262241 for the Engine section.
