Cylinder Head for BMW 6 Series E24 633CSi (1982)

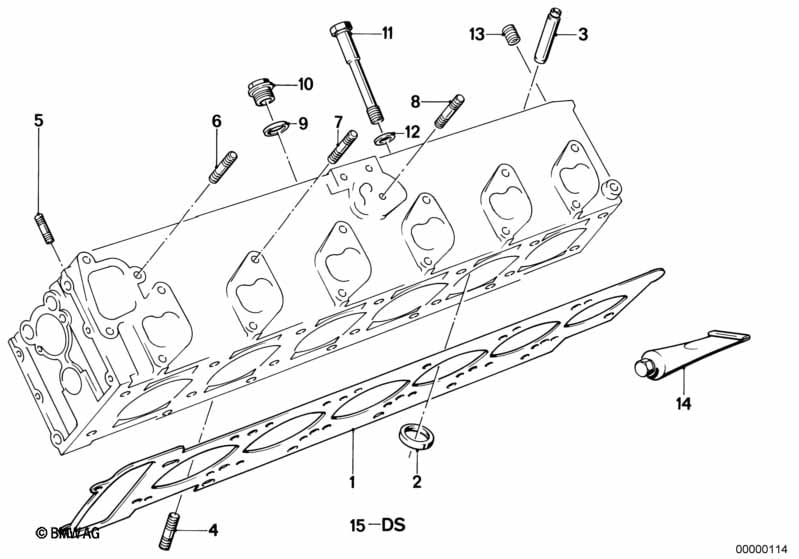

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head Gasket Asbestos-Free | 1 | 11129065648 | ENDED | Shop at ECS Tuning | |||||
| 01 | Cylinder Head Gasket Asbestos-Free | 1 | 11129065649 | Shop at ECS Tuning | ||||||
| 02 | Valve Seat Ring Intake | +0,20MM | 6 | 11121254253 | $7.33 | Shop at ECS Tuning | ||||
| 02 | Valve Seat Ring Intake | +0,40MM | 6 | 11121254254 | $7.33 | ENDED | Shop at ECS Tuning | |||
| 02 | Valve Seat Ring Exhaust | +0,40MM | 6 | 11121264035 | $7.48 | ENDED | Shop at ECS Tuning | |||
| 02 | Valve Seat Ring Exhaust | 6 | 11121271561 | ENDED | Shop at ECS Tuning | |||||
| 03 | Valve Guide | +0,10MM | X | 11121266760 | $11.54 | ENDED, SI 110288843 | Shop at ECS Tuning | |||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 03 | Valve Guide | +0,30MM | X | 11121266762 | ENDED, SI 110288843 | Shop at ECS Tuning | ||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 03 | Valve Guide | 14,30MM(+0,1) | X | 11121713406 | ENDED | Shop at ECS Tuning | ||||
| see service information SIT 843 11 02 88 (valve stem oversize) |
||||||||||
| 04 | Stud bolt | M8X40 | X | 07129908134 | $0.33 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M6X50 | 8 | 07129902312 | Shop at ECS Tuning | |||||
| 05 | Stud bolt | M6X25-ZN | 3 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M8X50-ZNS | 3 | 07129901917 | $0.61 | Shop at ECS Tuning | ||||
| 07 | Stud bolt | M8X28-ZN | X | 07119908368 | $0.54 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Screw plug | M20X1,5 | 1 | 07119919025 | ENDED | Shop at ECS Tuning | ||||
| 10 | Screw plug | M22X1,5 | 1 | 11121257379 | $2.70 | Shop at ECS Tuning | ||||
| 10 | Screw Plug With Gasket Ring | M22X1,5 | 1 | 11117558632 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M12X156 | X | 11120621144 | $4.57 | Shop at ECS Tuning | ||||
| 12 | Washer | X | 11120621145 | $0.65 | Shop at ECS Tuning | |||||
| 13 | Threaded plug | M6 | 8 | 11121744337 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 14 | Sealing compound | 1 | 11121262571 | ENDED | Shop at ECS Tuning | |||||
| 15 | Gasket Set Cylinder Head Asbestos Free | 1 | 11129065708 | $253.33 | Shop at ECS Tuning | |||||
| 15 | Gasket Set Cylinder Head Asbestos Free | 1 | 09/1981 | 11129065640 | $347.27 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 15 | Gasket Set Cylinder Head Asbestos Free | 1 | 09/1981 | 11129065640 | $347.27 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Gasket w/heat prot.shield asbestosfree | 2 | 09/1981 | 11621723656 | $39.83 | ENDED | Shop at ECS Tuning | |||
| -- | Gasket w/heat prot.shield asbestosfree | 2 | 09/1981 | 11621723656 | $39.83 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the 6 Series E24 633CSi produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head Gasket Asbestos-Free (Part #11129065648).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the 6 Series E24 633CSi produced during 1982. These technical specifications ensure that parts like the Cylinder Head Gasket Asbestos-Free (11129065648) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Cylinder Head Gasket Asbestos-Free by locating its position on the schematic, which then links to the official BMW part number 11129065648 for the Engine section.
