Cylinder head cover for BMW 7 Series E23 730 (1977)

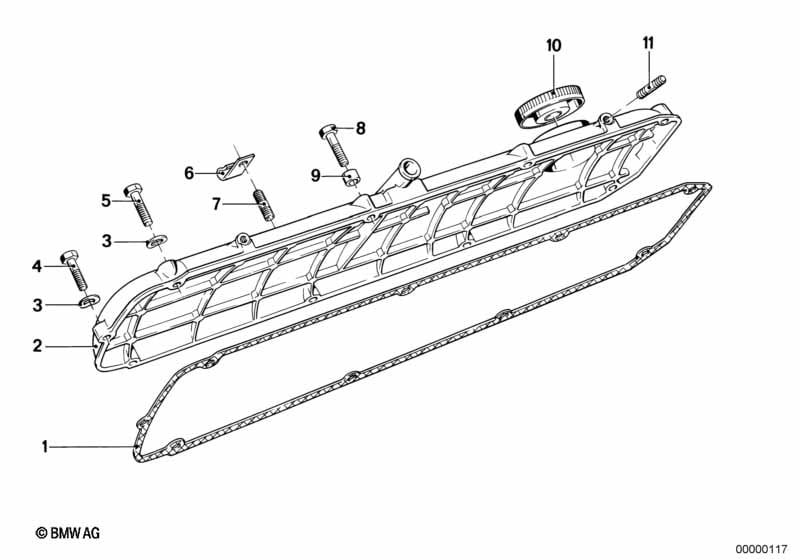

This Cylinder head cover technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 730. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 1 | 11121730936 | ENDED | Shop at ECS Tuning | |||||
| 02 | Cylinder head cover | 1 | 11121276593 | $188.46 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring washer Black | B6-ZN | X | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X40 | 8 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Clamp | 1 | 11530623124 | $0.21 | ENDED | Shop at ECS Tuning | ||||
| 07 | Stud bolt | M6X25-ZN | 2 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Cap for oil filler | 1 | 11121716993 | $5.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 730 Cylinder head cover?
- This technical diagram illustrates the Cylinder head cover within the Engine group for the 7 Series E23 730 produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Gasket Asbestos Free (Part #11121730936).
- Which models use the hardware listed in this Cylinder head cover?
- The hardware and components featured in the Cylinder head cover are specific to the 7 Series E23 730 produced during 1977. These technical specifications ensure that parts like the Gasket Asbestos Free (11121730936) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head cover assembly?
- Each item in the Cylinder head cover corresponds to the numbered list below the illustration. For the 7 Series E23 730, you can identify the Gasket Asbestos Free by locating its position on the schematic, which then links to the official BMW part number 11121730936 for the Engine section.
