Crankcase-Ventilation for BMW 7 Series E23 735i (1982)

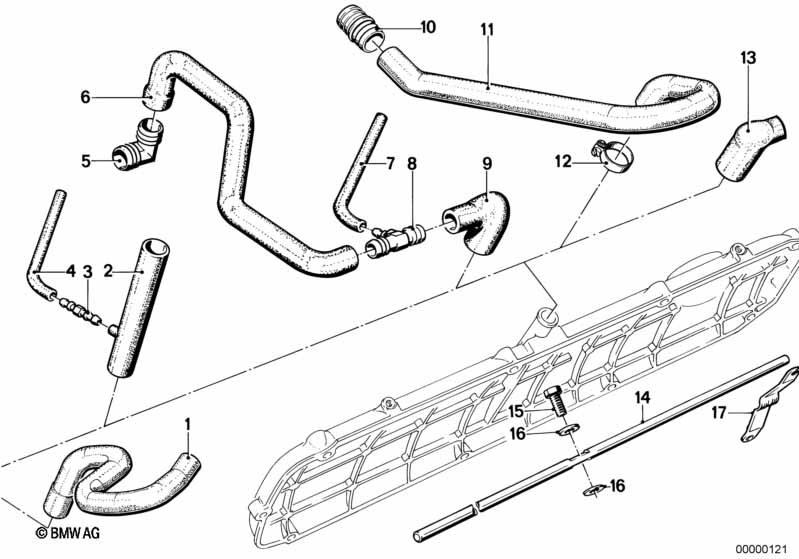

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Vent hose | D=20MM | 1 | 11151276485 | $7.54 | Shop at ECS Tuning | ||||
| 02 | Vent hose | D=20MM | 1 | 09/1980 | 11151276485 | $7.54 | Shop at ECS Tuning | |||
| 03 | Connection piece | D=4MM | 1 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 03 | Connection piece | D=4MM | 1 | 09/1980 | 11151276486 | $1.08 | Shop at ECS Tuning | |||
| 04 | Vacuum hose white | 3,3X1,8 | X | 09/1980 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 14 | Oil pipe | 1 | 11421256294 | $42.46 | Shop at ECS Tuning | |||||
| 15 | Hollow bolt | 2 | 11421738621 | $6.01 | Shop at ECS Tuning | |||||
| 16 | Gasket ring | A8X11,5 | 4 | 11421252343 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Clamp | 2 | 11421250567 | $1.05 | Shop at ECS Tuning |
