Crankcase-Ventilation for BMW 6 Series E24 635CSi (1989)

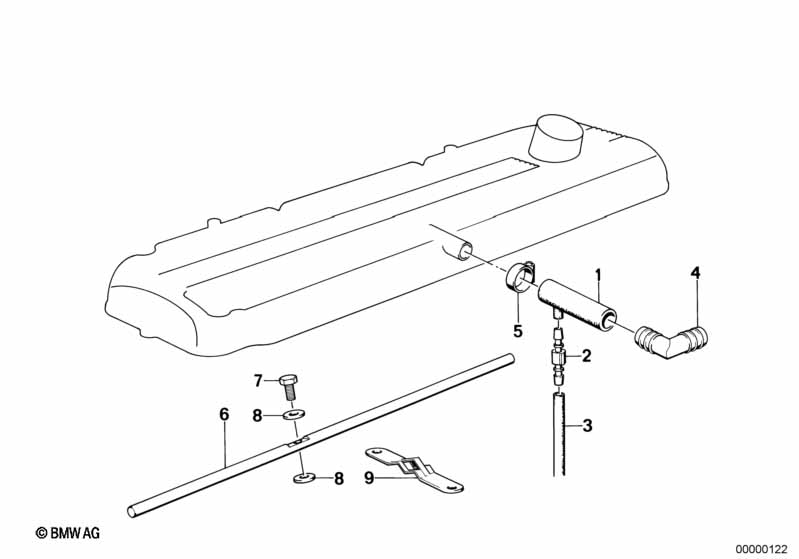

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent hose | D=20MM | 1 | 06/1987 | 11151276485 | $7.54 | Shop at ECS Tuning | |||
| 01 | Vent hose | D=20MM | 1 | 06/1987 | 11151276485 | $7.54 | Shop at ECS Tuning | |||
| 02 | Connection piece | D=4MM | 1 | 06/1987 | 11151276486 | $1.08 | Shop at ECS Tuning | |||
| 02 | Connection piece | D=4MM | 1 | 06/1987 | 11151276486 | $1.08 | Shop at ECS Tuning | |||
| 03 | Vacuum hose white | 3,3X1,8 | X | 06/1987 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 03 | Vacuum hose white | 3,3X1,8 | X | 06/1987 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 04 | Support | 1 | 06/1987 | 13541272473 | $1.43 | Shop at ECS Tuning | ||||
| 04 | Support | 1 | 06/1987 | 13541272473 | $1.43 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | L16-30 | 2 | 06/1987 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L16-30 | 2 | 06/1987 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 06 | Oil pipe | 2 | 06/1987 | 11421256294 | $42.46 | Shop at ECS Tuning | ||||
| 06 | Oil pipe | 2 | 06/1987 | 11421256294 | $42.46 | Shop at ECS Tuning | ||||
| 07 | Hollow bolt | 2 | 06/1987 | 11421738621 | $6.01 | Shop at ECS Tuning | ||||
| 07 | Hollow bolt | 2 | 06/1987 | 11421738621 | $6.01 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A8X11,5 | 4 | 06/1987 | 11421252343 | $0.25 | Shop at ECS Tuning | |||
| 08 | Gasket ring | A8X11,5 | 4 | 06/1987 | 11421252343 | $0.25 | Shop at ECS Tuning | |||
| 09 | Clamp | 2 | 06/1987 | 11421250567 | $1.05 | Shop at ECS Tuning | ||||
| 09 | Clamp | 2 | 06/1987 | 11421250567 | $1.05 | Shop at ECS Tuning |
