Cylinder Head for BMW 3 Series E21 316 (1982)

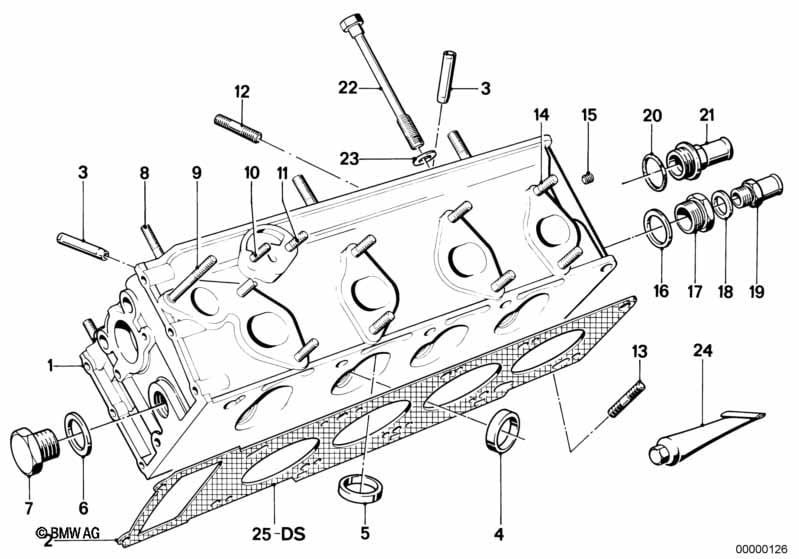

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 316. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Screw plug | M30X1,5 | 1 | 07119919039 | $3.11 | Shop at ECS Tuning | ||||
| 07 | Gasket ring | A30X36-AL | 1 | 24111219126 | $0.71 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X50 | 6 | 07129902312 | Shop at ECS Tuning | |||||
| 09 | Stud bolt | M8X90 | 1 | 07129908160 | $0.76 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M8X50-ZNS | 1 | 07129901917 | $0.61 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M8X55 | 1 | 07129908137 | $0.47 | Shop at ECS Tuning | ||||
| 13 | Stud bolt | M8X40 | 8 | 07129908134 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Stud bolt | M8X28-ZN | 7 | 07119908368 | $0.54 | Shop at ECS Tuning | ||||
| 15 | Threaded plug | M6 | 1 | 11121744337 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 20 | O-ring | 34X2 | 1 | 08/1978 | 11121277350 | $0.88 | ENDED | Shop at ECS Tuning | ||
| 21 | Connector | M36 | 1 | 08/1978 | 11121257516 | $7.12 | Shop at ECS Tuning | |||
| 22 | Hex bolt | M12X156 | X | 11120621144 | $4.57 | Shop at ECS Tuning | ||||
| 23 | Washer | X | 11120621145 | $0.65 | Shop at ECS Tuning | |||||
| 24 | Sealing compound | 1 | 11121262571 | ENDED | Shop at ECS Tuning | |||||
| 25 | Gasket Set Cylinder Head Asbestos Free | 1 | 11129065680 | $176.55 | ENDED | Shop at ECS Tuning | ||||
| 25 | Gasket Set Cylinder Head Asbestos Free | 1 | 11129065702 | $197.75 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Gasket ring | 1 | 13118685556 | Shop at ECS Tuning | ||||||
| -- | Gasket Asbestos Free | 1 | 13119065692 | $3.00 | Shop at ECS Tuning | |||||
| -- | Gasket Asbestos Free | 1 | 11619065693 | $6.07 | Shop at ECS Tuning | |||||
| -- | Gasket ring | 1 | 11530588206 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| -- | Gasket ring | A8X11,5 | 1 | 11421252343 | $0.25 | Shop at ECS Tuning | ||||
| -- | Valve seal ring | D=13,9MM | 8 | 11341261269 | Shop at ECS Tuning | |||||
| 25 | Gasket Set Cylinder Head Asbestos Free | 1 | 08/1978 | 11129065702 | $197.75 | Shop at ECS Tuning | ||||
| 25 | Gasket Set Cylinder Head Asbestos Free | 1 | 09/1980 | 11121734115 | $231.88 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 316 Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the 3 Series E21 316 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Screw plug (Part #07119919039).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the 3 Series E21 316 produced during 1982. These technical specifications ensure that parts like the Screw plug (07119919039) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the 3 Series E21 316, you can identify the Screw plug by locating its position on the schematic, which then links to the official BMW part number 07119919039 for the Engine section.
