Cylinder Head for BMW 6 Series E24 M6

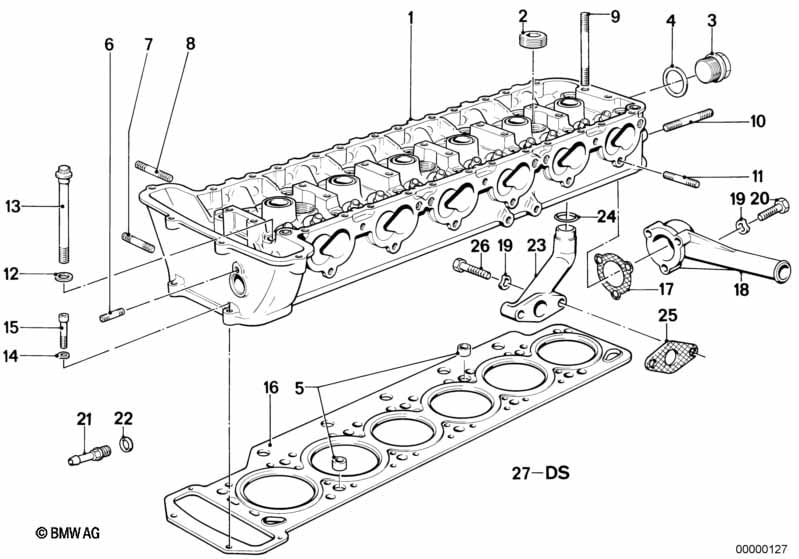

This Cylinder Head technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cylinder Head | DOPPELKETTE | 1 | 11121310087 | $2360.92 | Shop at ECS Tuning | ||||
| 02 | Screw plug | M30X1,5 | 4 | 11121304695 | $5.23 | Shop at ECS Tuning | ||||
| 02 | Screw plug | M33X1,5 | 1 | 11121305717 | $12.08 | Shop at ECS Tuning | ||||
| 03 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Dowel | D=10,5MM | X | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M6X25-ZN | 1 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Stud bolt | M6X30-ZNNIV SI | X | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M6X40 | X | 07129904546 | Shop at ECS Tuning | |||||
| 09 | Stud bolt | M8X90 | X | 07129908160 | $0.76 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M8X55 | 3 | 07129908137 | $0.47 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M8X40 | X | 07129903964 | Shop at ECS Tuning | |||||
| 12 | Washer | X | 11121280413 | $7.00 | Shop at ECS Tuning | |||||
| 13 | Screw | X | 11121307135 | $5.13 | Shop at ECS Tuning | |||||
| 14 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 15 | ISA screw | M6X30-8.8-ZNNIV | 2 | 07129905386 | $0.86 | Shop at ECS Tuning | ||||
| 16 | Cylinder Head Gasket Asbestos-Free | 1,74MM | 1 | 11121316705 | $159.56 | ENDED | Shop at ECS Tuning | |||
| 17 | Gasket Asbestos Free | 1 | 11151312176 | $2.35 | Shop at ECS Tuning | |||||
| 18 | Cover | 1 | 11121253208 | $42.41 | ENDED | Shop at ECS Tuning | ||||
| 19 | Spring washer Black | B6-ZN | 5 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 20 | Hex bolt | M6X30-8.8-ZNS3 | 3 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 21 | Connector | 1 | 11121307249 | $6.45 | Shop at ECS Tuning | |||||
| 22 | Gasket ring | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 23 | Oilreturnpipe | 1 | 11421316716 | $111.35 | ENDED | Shop at ECS Tuning | ||||
| 24 | O-ring | 22X2 | 1 | 11411304178 | $1.83 | Shop at ECS Tuning | ||||
| 25 | Gasket Asbestos Free | 1 | 11421312175 | $3.67 | Shop at ECS Tuning | |||||
| 26 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 27 | Gasket Set Cylinder Head Asbestos Free | 1 | 11121316991 | $529.83 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 M6 Cylinder Head?
- This technical diagram illustrates the Cylinder Head within the Engine group for the 6 Series E24 M6. It provides a detailed exploded view of the components, identifying key parts such as the Cylinder Head (Part #11121310087).
- Which models use the hardware listed in this Cylinder Head?
- The hardware and components featured in the Cylinder Head are specific to the 6 Series E24 M6. These technical specifications ensure that parts like the Cylinder Head (11121310087) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder Head assembly?
- Each item in the Cylinder Head corresponds to the numbered list below the illustration. For the 6 Series E24 M6, you can identify the Cylinder Head by locating its position on the schematic, which then links to the official BMW part number 11121310087 for the Engine section.
