Cylinder head/intermediate housing for BMW 3 Series E30 M3 (1991)

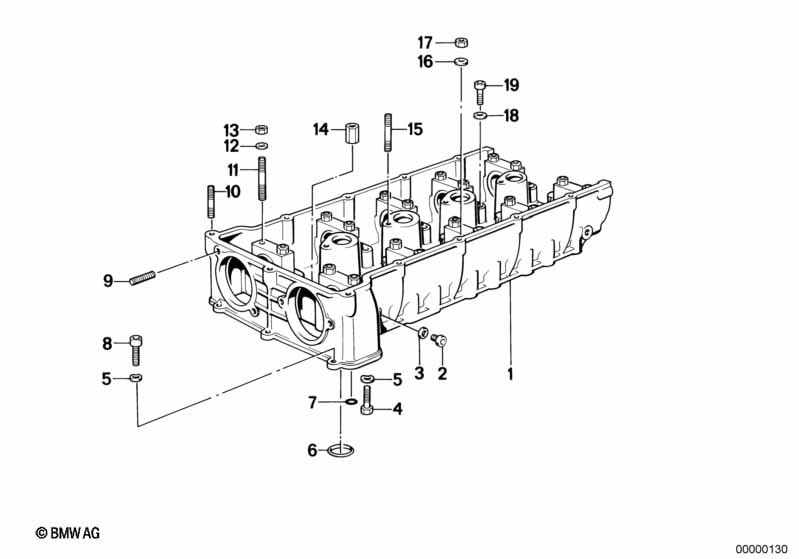

This Cylinder head/intermediate housing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Housing | 1 | 11121308424 | $1978.02 | ENDED | Shop at ECS Tuning | ||||
| 02 | Screw plug | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M6X40-Z3 | 2 | 07119913951 | $0.30 | Shop at ECS Tuning | ||||
| 04 | ISA screw | M6X30-8.8-ZNNIV | 2 | 07129905386 | $0.86 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 5 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | O-ring | 28X2 | 4 | 11121304174 | $3.25 | Shop at ECS Tuning | ||||
| 07 | O-ring | 12X1,5 | 1 | 11121304173 | $2.21 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X20-8.8-ZNNIV | 2 | 07129901130 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Fillister-head screw | M6X30 | 1 | 11121307145 | $4.68 | ENDED | Shop at ECS Tuning | |||
| 09 | Stud bolt | M6X25-ZN | 6 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M6X35-ZNS3 | X | 07129903886 | Shop at ECS Tuning | |||||
| 11 | Stud bolt | M8X55 | X | 07129908137 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Washer | 8,4 | X | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Hex nut | M8-8-ZNS3 | X | 07/1991 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 13 | Hex nut | M8-8-ZNNIV SI | X | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 14 | Hex nut | M8-Z1 | X | 11121312308 | $4.68 | ENDED | Shop at ECS Tuning | |||
| 15 | Stud bolt | M6X45 | 5 | 07129908105 | $0.82 | Shop at ECS Tuning | ||||
| 17 | Hex nut | M8-8-ZNS3 | X | 07/1991 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 17 | Hex nut | M8-8-ZNNIV SI | X | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 18 | Shim | 7X13X1 | X | 07119932622 | ENDED | Shop at ECS Tuning | ||||
| 19 | Fillister head with washer | M7X30-Z1 | X | 11121312307 | $1.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 M3 Cylinder head/intermediate housing?
- This technical diagram illustrates the Cylinder head/intermediate housing within the Engine group for the 3 Series E30 M3 produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Housing (Part #11121308424).
- Which models use the hardware listed in this Cylinder head/intermediate housing?
- The hardware and components featured in the Cylinder head/intermediate housing are specific to the 3 Series E30 M3 produced during 1991. These technical specifications ensure that parts like the Housing (11121308424) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cylinder head/intermediate housing assembly?
- Each item in the Cylinder head/intermediate housing corresponds to the numbered list below the illustration. For the 3 Series E30 M3, you can identify the Housing by locating its position on the schematic, which then links to the official BMW part number 11121308424 for the Engine section.
