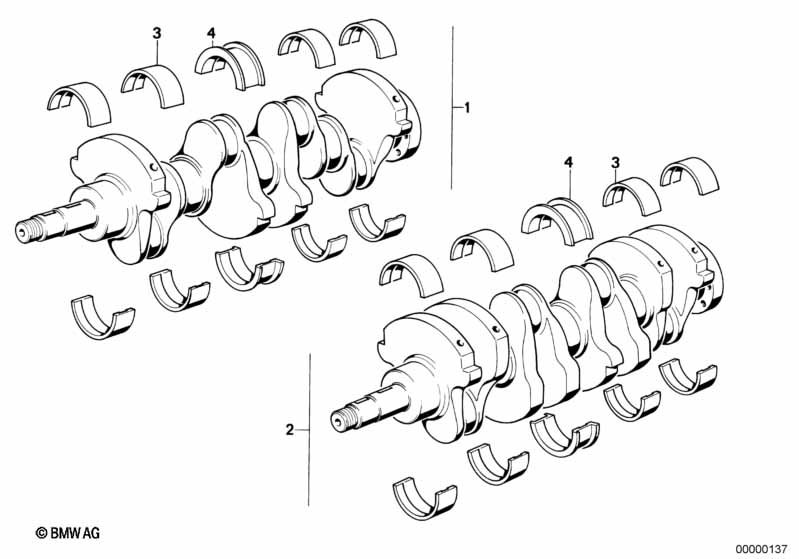

Crankshaft with bearing shells for BMW 3 Series E21 320i (1977)
This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Crankshaft without bearing shells | HUB 80MM | 1 | 09/1979 | 11211252127 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell, red | 55,00MM(0) | 8 | 11210666110 | $13.88 | Shop at ECS Tuning | ||||
| 03 | Bearing shell, blue | 55,00MM(0) | 8 | 11210666115 | $14.12 | Shop at ECS Tuning | ||||
| 03 | Bearing shell, red | 54,75MM(+0,25) | 8 | 11210666130 | $13.88 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell, red | 54,50MM(+0,50) | 8 | 11210666135 | $13.88 | Shop at ECS Tuning | ||||
| 03 | Bearing shell, blue | 54,75MM(+0,25) | 8 | 11211250147 | $14.15 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell, blue | 54,50MM(+0,50) | 8 | 11211250148 | $11.27 | Shop at ECS Tuning | ||||
| 03 | Bearing shell, red | 54,25MM(+0,75) | 8 | 11211255198 | $14.83 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell, blue | 54,25MM(+0,75) | 8 | 11211255199 | ENDED | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell red | 55,00MM(0) | 2 | 11210666100 | $30.78 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell blue | 55,00MM(0) | 2 | 11210666105 | $21.80 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell red | 54,75MM(+0,25) | 2 | 11210666120 | $21.80 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell red | 54,50MM(+0,50) | 2 | 11210666125 | $33.15 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell blue | 54,75MM(+0,25) | 2 | 11211250149 | $25.98 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell blue | 54,50MM(+0,50) | 2 | 11211250300 | $25.98 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell red | 54,25MM(+0,75) | 2 | 11211255200 | $25.98 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell blue | 54,25MM(+0,75) | 2 | 11211255201 | $20.42 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
