Fan belt drive-v belt pulley for BMW 3 Series E21 320i (1977)

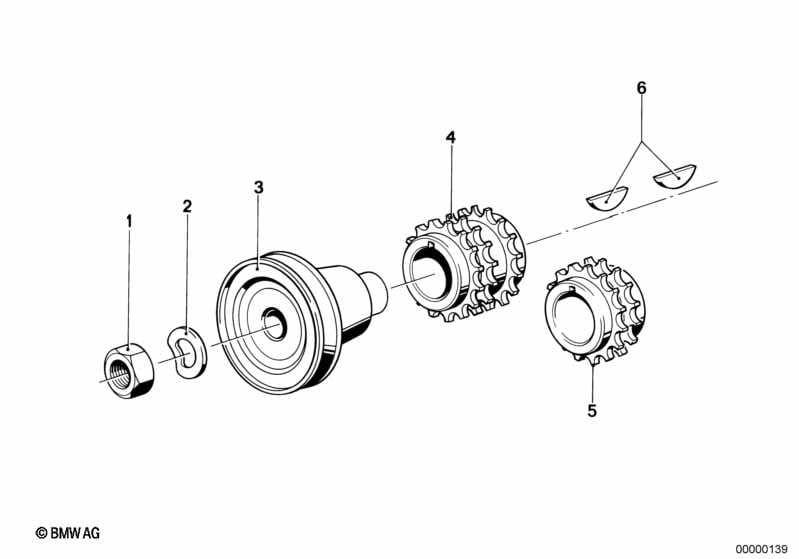

This Fan belt drive-v belt pulley technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex nut | M20X1,5 | 1 | 07119921656 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 02 | Wave washer | B20 | 1 | 07119932183 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 03 | Pulley | 1 | 09/1979 | 11231264707 | $184.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 03 | Pulley | 1 | 09/1979 | 11211286336 | $143.70 | Shop at ECS Tuning | ||||
| 04 | Sprocket | 1 | 11/1978 | 11211260571 | $99.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Woodruff key | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
