Belt Drive-Vibration Damper for BMW 5 Series E28 525e (1987)

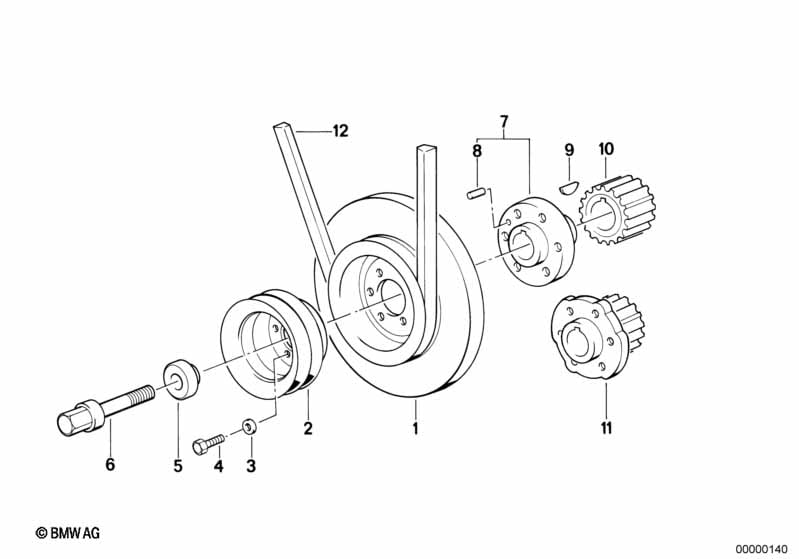

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 11231705764 | $352.75 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vibration damper | 1 | 12/1986 | 11231714855 | $352.75 | Shop at ECS Tuning | ||||
| 02 | Pulley | D=119,6 | 1 | 11231280958 | $70.73 | Shop at ECS Tuning | ||||
| 03 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M8X16-10.9-PHR | 6 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Washer | 1 | 11231288660 | $8.10 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M18X1,5X65 | 1 | 11231709037 | $8.04 | Shop at ECS Tuning | ||||
| 08 | Pin | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 09 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 11 | Gear wheel,tooth belt | 1 | 11211284940 | $84.25 | Shop at ECS Tuning | |||||
| 12 | Fan belt | 9,5X965 | 1 | 09/1983 | 11511711091 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
