Flywheel for BMW 5 Series E12 520 (1976)

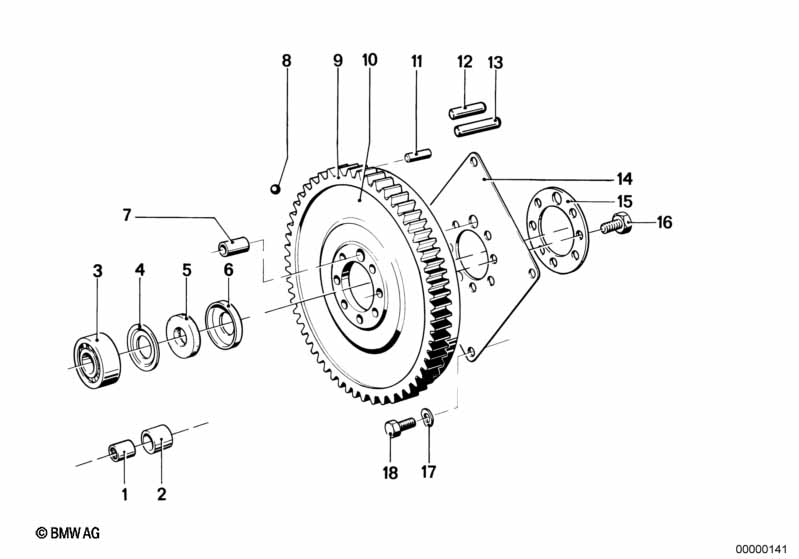

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Ball | 4MM III | 1 | 07119986240 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Flywheel | 3HP22 | 1 | 08/1975 | 11221284675 | $343.05 | Shop at ECS Tuning | |||
| 12 | Pin | 4X12 | 1 | 07119943490 | ENDED | Shop at ECS Tuning | ||||
| 13 | Pin | 4X16 | 1 | 07119943491 | ENDED | Shop at ECS Tuning | ||||
| 14 | Driving dog | 3HP22 | 1 | 08/1975 | 24401205588 | $24.83 | ENDED | Shop at ECS Tuning | ||
| 16 | Hex bolt | M12X1,5X22 | 8 | 11220616143 | $3.77 | Shop at ECS Tuning | ||||
| 17 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M8X10 | 4 | 07119913610 | $0.32 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Dowel (Part #11111743118).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Dowel (11111743118) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Dowel by locating its position on the schematic, which then links to the official BMW part number 11111743118 for the Engine section.
