Flywheel / Twin Mass Flywheel for BMW 3 Series E21 320 (1979)

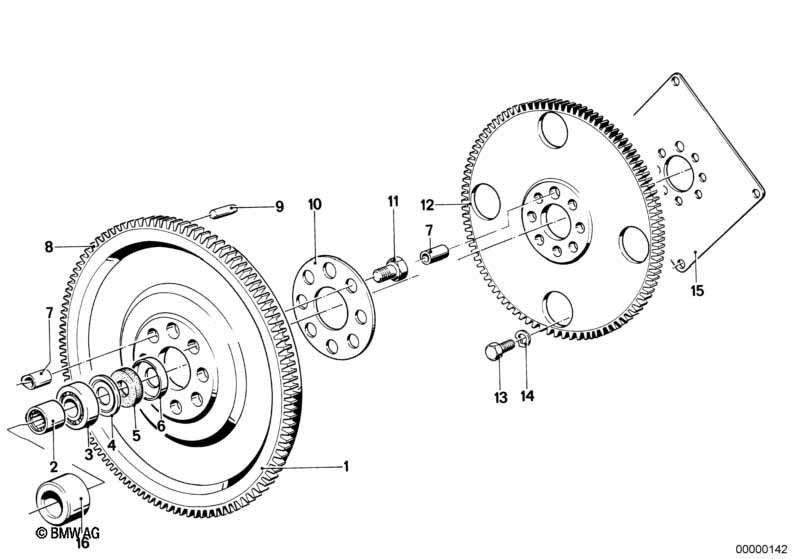

This Flywheel / Twin Mass Flywheel technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 09 | Dowel pin | 3 | 11221744338 | $7.48 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M12X1,5X28 | 8 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 12 | Flywheel | 1 | 11221281000 | $315.83 | Shop at ECS Tuning | |||||
| 13 | Hex bolt with washer | M8X12-Z3-1 | 4 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Driving dog | 3HP22 | 1 | 24401205588 | $24.83 | ENDED | Shop at ECS Tuning | |||
| 16 | Sleeve | D=32/21MM | 1 | 11211262750 | $21.81 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Flywheel / Twin Mass Flywheel?
- This technical diagram illustrates the Flywheel / Twin Mass Flywheel within the Engine group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Dowel (Part #11111743118).
- Which models use the hardware listed in this Flywheel / Twin Mass Flywheel?
- The hardware and components featured in the Flywheel / Twin Mass Flywheel are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Dowel (11111743118) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel / Twin Mass Flywheel assembly?
- Each item in the Flywheel / Twin Mass Flywheel corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Dowel by locating its position on the schematic, which then links to the official BMW part number 11111743118 for the Engine section.
