Flywheel / Twin Mass Flywheel for BMW 6 Series E24 633CSi (1978)

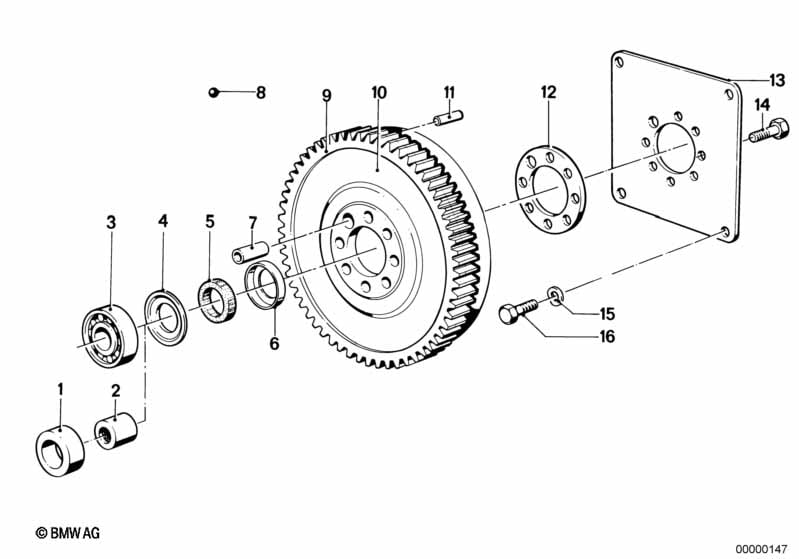

This Flywheel / Twin Mass Flywheel technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Needle bearing | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 03 | Grooved ball bearing | 12X32X10 | 1 | 11211709681 | $17.67 | Shop at ECS Tuning | ||||
| 03 | Grooved ball bearing | 1 | 11211709934 | Shop at ECS Tuning | ||||||
| 04 | Covering plate | 1 | 11211744345 | $3.92 | Shop at ECS Tuning | |||||
| 05 | Feltring | 1 | 11211744601 | $0.87 | ENDED | Shop at ECS Tuning | ||||
| 06 | Covering cap | 1 | 11211744342 | $1.18 | Shop at ECS Tuning | |||||
| 07 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Ball | 4MM III | 1 | 07119986240 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Gear rim | 262MM | 1 | 11220616145 | ENDED | Shop at ECS Tuning | ||||
| 09 | Gear rim | Z=116 | 1 | 11221270080 | ENDED | Shop at ECS Tuning | ||||
| 10 | Flywheel | D=240 X 27 | 1 | 09/1979 | 11221270286 | $394.03 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Shim | 1 | 09/1979 | 11221262827 | $32.37 | Shop at ECS Tuning | ||||
| 11 | Dowel pin | 3 | 11221744338 | $7.48 | Shop at ECS Tuning | |||||
| 12 | Shim | 1 | 11221262827 | $32.37 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M12X1,5X28 | 8 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Flywheel / Twin Mass Flywheel?
- This technical diagram illustrates the Flywheel / Twin Mass Flywheel within the Engine group for the 6 Series E24 633CSi produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Needle bearing (Part #11211276551).
- Which models use the hardware listed in this Flywheel / Twin Mass Flywheel?
- The hardware and components featured in the Flywheel / Twin Mass Flywheel are specific to the 6 Series E24 633CSi produced during 1978. These technical specifications ensure that parts like the Needle bearing (11211276551) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel / Twin Mass Flywheel assembly?
- Each item in the Flywheel / Twin Mass Flywheel corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Needle bearing by locating its position on the schematic, which then links to the official BMW part number 11211276551 for the Engine section.
