Flywheel for BMW 5 Series E28 518 (1981)

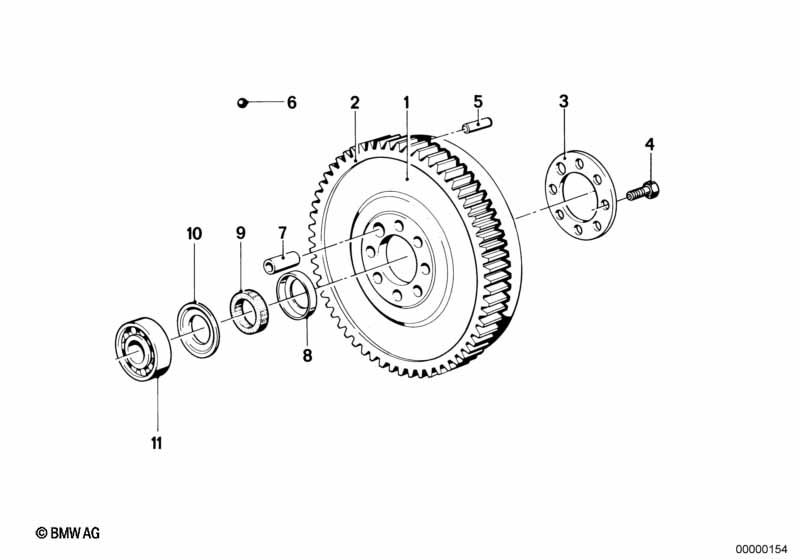

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flywheel | D=215MM,8 LOCH | 1 | 09/1982 | 11221270292 | $278.24 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| -- | Clutch disk asbestos-free | D=215MM | X | 09/1982 | 21211223575 | $188.25 | ENDED | Shop at ECS Tuning | ||
| -- | Pressure plate | D=215MM | X | 09/1982 | 21211225865 | $226.44 | Shop at ECS Tuning | |||
| 02 | Gear rim | Z=116 | 1 | 11221270080 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shim | 1 | 11221262827 | $32.37 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M12X1,5X22 | 8 | 11220616143 | $3.77 | Shop at ECS Tuning | ||||
| 05 | Dowel pin | 1 | 11221744338 | $7.48 | Shop at ECS Tuning | |||||
| 06 | Ball | 4MM III | 1 | 07119986240 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 08 | Covering cap | 1 | 11211744342 | $1.18 | Shop at ECS Tuning | |||||
| 09 | Feltring | 1 | 11211744601 | $0.87 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering plate | 1 | 11211744345 | $3.92 | Shop at ECS Tuning | |||||
| 11 | Grooved ball bearing | 12X32X10 | 1 | 11211709681 | $17.67 | Shop at ECS Tuning | ||||
| 11 | Grooved ball bearing | 1 | 11211709934 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 518 Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 5 Series E28 518 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Flywheel (Part #11221270292).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 5 Series E28 518 produced during 1981. These technical specifications ensure that parts like the Flywheel (11221270292) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 5 Series E28 518, you can identify the Flywheel by locating its position on the schematic, which then links to the official BMW part number 11221270292 for the Engine section.
