Flywheel for BMW 5 Series E28 520i (1982)

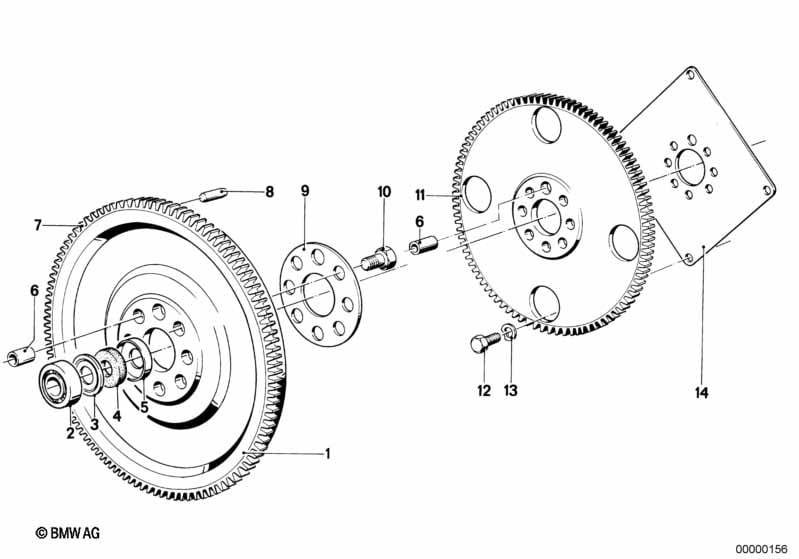

This Flywheel technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Dowel | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 10 | Shim | 1 | 11221710038 | $11.46 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M12X1,5X28 | 8 | 11227805885 | $2.30 | Shop at ECS Tuning | ||||
| 11 | Flywheel | 4HP22 | 1 | 11221716276 | $409.06 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt | M10X16 | 4 | 07119914121 | $0.41 | Shop at ECS Tuning | ||||
| 13 | Wave washer | B10-ZNS | 4 | 12/1987 | 07119932122 | $0.38 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Flywheel?
- This technical diagram illustrates the Flywheel within the Engine group for the 5 Series E28 520i produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Dowel (Part #11111743118).
- Which models use the hardware listed in this Flywheel?
- The hardware and components featured in the Flywheel are specific to the 5 Series E28 520i produced during 1982. These technical specifications ensure that parts like the Dowel (11111743118) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Flywheel assembly?
- Each item in the Flywheel corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Dowel by locating its position on the schematic, which then links to the official BMW part number 11111743118 for the Engine section.
