Belt Drive-Vibration Damper for BMW 5 Series E39 528i (1998)

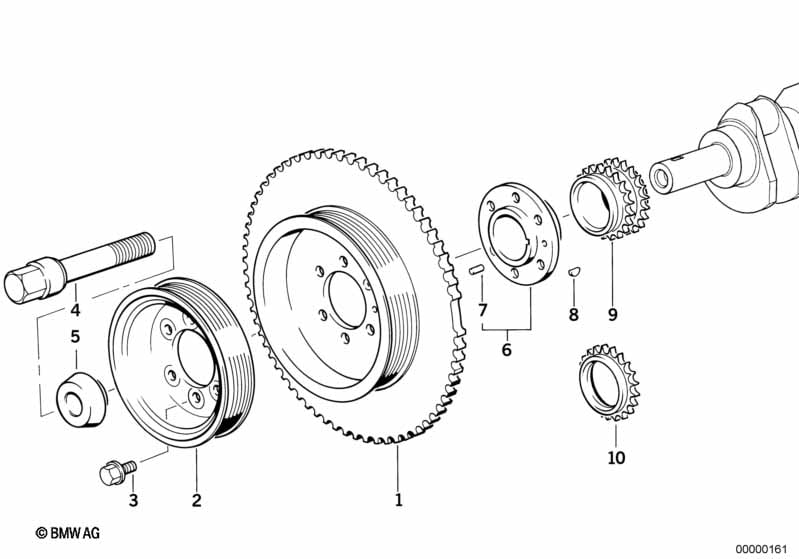

This Belt Drive-Vibration Damper technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vibration damper | 1 | 09/1998 | 11231738620 | $660.37 | +core | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 02 | Pulley | D=129MM | 1 | 09/1996 | 09/1998 | 11281735358 | $68.97 | Shop at ECS Tuning | ||
| 03 | Hex bolt with washer | M8X12-Z3-1 | 6 | 09/1998 | 07119913011 | $0.47 | Shop at ECS Tuning | |||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 03 | Hex bolt with washer | M8X18-U1-8.8 | 6 | 09/1998 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 04 | Hex bolt | 1 | 09/1998 | 11211720633 | $5.83 | Shop at ECS Tuning | ||||
| 05 | Washer | 1 | 09/1998 | 11231288660 | $8.10 | Shop at ECS Tuning | ||||
| 06 | Hub | 1 | 09/1998 | 11211726449 | $61.18 | Shop at ECS Tuning | ||||
| 07 | Pin | 1 | 09/1998 | 11231263911 | $0.92 | Shop at ECS Tuning | ||||
| 08 | Woodruff key | 5X6.5 | 2 | 09/1998 | 07119951480 | $0.88 | Shop at ECS Tuning | |||
| 09 | Sprocket | 1 | 09/1998 | 11211719984 | $71.52 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
