Crankshaft Connecting Rod for BMW 5 Series E12 518 (1976)

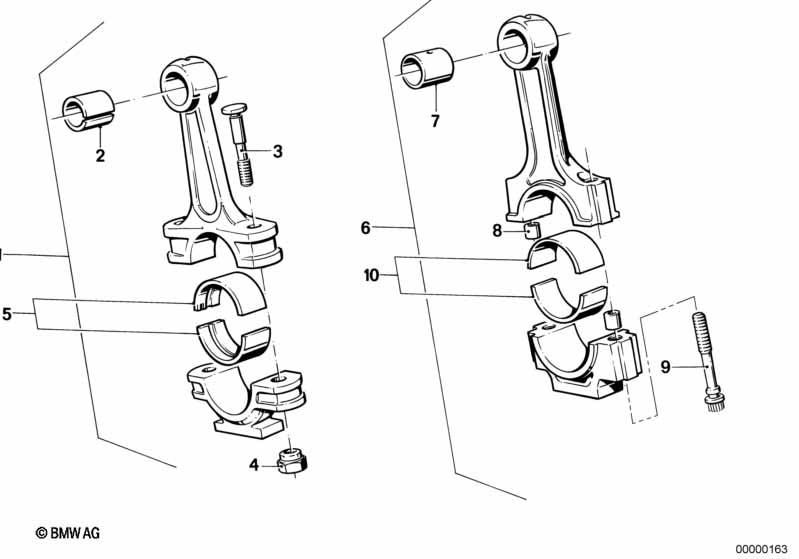

This Crankshaft Connecting Rod technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Connecting rod | L=135MM | 4 | 11240618006 | $209.32 | Shop at ECS Tuning | ||||
| 02 | Connecting rod bush | 4 | 11240618100 | $2.47 | Shop at ECS Tuning | |||||
| 03 | Connecting rod bolt | 8 | 11240618111 | $4.95 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex nut | M10X1 | 8 | 11240518321 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Bearing shell | 48,00MM | 8 | 11241258428 | $9.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Bearing shell | 47,500MM(+0,50) | 8 | 11241258431 | $17.45 | ENDED | Shop at ECS Tuning | |||
| 05 | Bearing shell, red | 48,00MM(0) | 8 | 11241284550 | $10.85 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 48,00MM(0) | 8 | 11241284551 | $10.85 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, red | 47,75MM(+0,25) | 8 | 11241284552 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 47,75MM(+0,25) | 8 | 11241284553 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, red | 47,50MM(+0,50) | 8 | 11241284554 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 47,50MM(+0,50) | 8 | 11241284555 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, red | 47,25MM(+0,75) | 8 | 11241284556 | $13.27 | Shop at ECS Tuning | ||||
| 05 | Bearing shell, blue | 47,25MM(+0,75) | 8 | 11241284557 | $10.94 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
