Timing+valve train-tooth belt/camshaft for BMW 3 Series E21 320 (1979)

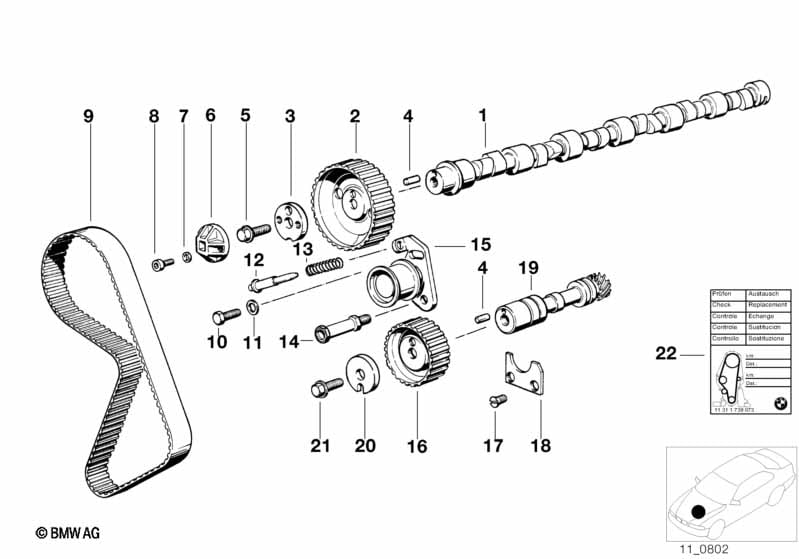

This Timing+valve train-tooth belt/camshaft technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 11311265457 | $511.70 | Shop at ECS Tuning | |||||
| 02 | Gear wheel,tooth belt | 1 | 10/1981 | 11311264532 | $71.47 | ENDED | Shop at ECS Tuning | |||
| 03 | Washer | O. LOCH | 1 | 11311717180 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Dowel pin | 8 M6X14 | 2 | 07119942079 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Lock bolt | M10X28 | 2 | 11311266796 | $1.29 | Shop at ECS Tuning | ||||
| 05 | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 06 | Adapter | 1 | 11311276855 | $4.90 | Shop at ECS Tuning | |||||
| 07 | Washer | 6-200 HV-ZNS3 | 2 | 07119904606 | $0.84 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X10-8.8-ZNS3 | 2 | 07129903804 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Tooth belt semicircular profile | Z=127 | 1 | 11311711081 | Shop at ECS Tuning | |||||
| See Service Information SIT 319 11/07/84 SIT 498 11/03/86 |
||||||||||
| 09 | Tooth belt rectangular profile | Z=110 | 1 | 10/1981 | 11311717215 | $52.73 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adjusting pulley | 1 | 10/1981 | 11311711154 | Shop at ECS Tuning | |||||
| -- | Compression spring blue | 1 | 10/1981 | 11311718805 | $0.58 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 11 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Pin | 1 | 11311280960 | $4.32 | Shop at ECS Tuning | |||||
| 13 | Compression spring | 1 | 11311267746 | $1.09 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Tooth belt rectangular profile | Z=111 | X | 11311265524 | $34.60 | ENDED | Shop at ECS Tuning | |||
| -- | Adjusting pulley | X | 11311272424 | $44.27 | ENDED | Shop at ECS Tuning | ||||
| 13 | Compression spring blue | 1 | 11311718805 | $0.58 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Adjusting pulley | X | 11311711153 | $103.08 | ENDED | Shop at ECS Tuning | ||||
| -- | Tooth belt rectangular profile | Z=110 | X | 11311717215 | $52.73 | Shop at ECS Tuning | ||||
| 14 | Screw | 1 | 11311266431 | $7.62 | Shop at ECS Tuning | |||||
| 15 | Adjusting pulley | 1 | 11311711154 | Shop at ECS Tuning | ||||||
| 16 | Gear wheel,tooth belt | 1 | 10/1981 | 11311265458 | $21.99 | Shop at ECS Tuning | ||||
| 17 | Countersunk head screw | M6X12 | 2 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 18 | Guide | 1 | 11351280551 | $7.88 | Shop at ECS Tuning | |||||
| 19 | Set intermediate shaft | B | 1 | 11359058741 | ENDED | Shop at ECS Tuning | ||||
| 19 | Intermediate shaft | B | 1 | 11351716095 | $145.96 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Pin | 1 | 12111269328 | $0.18 | ENDED | Shop at ECS Tuning | ||||
| -- | Gear wheel | B | 1 | 12111711310 | $77.00 | Shop at ECS Tuning | ||||
| -- | Washer | 1 | 11311714795 | $2.12 | Shop at ECS Tuning | |||||
| -- | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 20 | Washer | M. 4 LÖCHER | 1 | 11311264692 | $6.90 | Shop at ECS Tuning | ||||
| 20 | Washer | 1 | 11311714795 | $2.12 | Shop at ECS Tuning | |||||
| 21 | Lock bolt | M10X28 | 1 | 11311266796 | $1.29 | Shop at ECS Tuning | ||||
| 21 | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 22 | Label, Tooth Belt Change | 1 | 11311739073 | $0.45 | Shop at ECS Tuning | |||||
