Timimg gear - rocker arm/valves for BMW 6 Series E24 635CSi (1989)

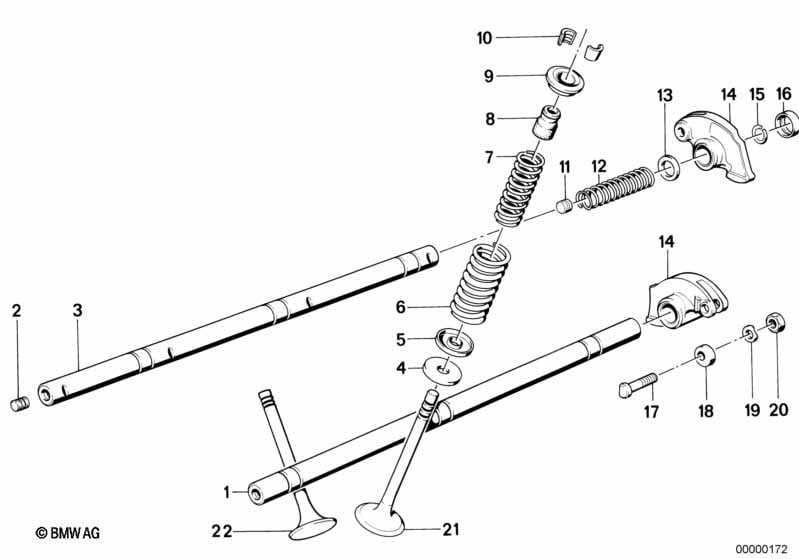

This Timimg gear - rocker arm/valves technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rocker arm shaft intake rear | 1 | 06/1986 | 11331274929 | $81.32 | Shop at ECS Tuning | ||||
| 01 | Rocker arm shaft intake rear | 1 | 06/1986 | 11331274929 | $81.32 | Shop at ECS Tuning | ||||
| 01 | Rocker arm shaft intake front | 1 | 06/1986 | 11331274963 | $81.32 | Shop at ECS Tuning | ||||
| 01 | Rocker arm shaft intake front | 1 | 06/1986 | 11331274963 | $81.32 | Shop at ECS Tuning | ||||
| 02 | Plug | 4 | 06/1986 | 11331266400 | $5.48 | Shop at ECS Tuning | ||||
| 02 | Plug | 4 | 06/1986 | 11331266400 | $5.48 | Shop at ECS Tuning | ||||
| 03 | Rocker arm shaft exhaust rear | 1 | 06/1986 | 11331274947 | $81.32 | +core | Shop at ECS Tuning | |||
| 03 | Rocker arm shaft exhaust rear | 1 | 06/1986 | 11331274947 | $81.32 | +core | Shop at ECS Tuning | |||
| 03 | Rocker arm shaft exhaust front | 1 | 06/1986 | 11331274959 | $81.32 | Shop at ECS Tuning | ||||
| 03 | Rocker arm shaft exhaust front | 1 | 06/1986 | 11331274959 | $81.32 | Shop at ECS Tuning | ||||
| 05 | Spring pocket | X | 06/1986 | 11341713413 | $3.77 | Shop at ECS Tuning | ||||
| 05 | Spring pocket | X | 06/1986 | 11341713413 | $3.77 | Shop at ECS Tuning | ||||
| 06 | Valve spring | D=31,2MM | X | 06/1986 | 11341714768 | $7.88 | Shop at ECS Tuning | |||
| 06 | Valve spring | D=31,2MM | X | 06/1986 | 11341714768 | $7.88 | Shop at ECS Tuning | |||
| 07 | Valve spring | D=21,2MM | X | 06/1986 | 11341714767 | $7.88 | Shop at ECS Tuning | |||
| 07 | Valve spring | D=21,2MM | X | 06/1986 | 11341714767 | $7.88 | Shop at ECS Tuning | |||
| 08 | Repair kit valve seal ring | D=10,8MM | 1 | 06/1986 | 11349059170 | $46.94 | ENDED | Shop at ECS Tuning | ||
| 08 | Repair kit valve seal ring | D=10,8MM | 1 | 06/1986 | 11349059170 | $46.94 | ENDED | Shop at ECS Tuning | ||
| 09 | Upper spring plate | X | 06/1986 | 11341713412 | $3.77 | Shop at ECS Tuning | ||||
| 09 | Upper spring plate | X | 06/1986 | 11341713412 | $3.77 | Shop at ECS Tuning | ||||
| 10 | Valve collet | X | 06/1986 | 11341710975 | $1.08 | Shop at ECS Tuning | ||||
| 10 | Valve collet | X | 06/1986 | 11341710975 | $1.08 | Shop at ECS Tuning | ||||
| 11 | Screw plug | M12X1 | 4 | 06/1986 | 11331274923 | $1.62 | Shop at ECS Tuning | |||
| 11 | Screw plug | M12X1 | 4 | 06/1986 | 11331274923 | $1.62 | Shop at ECS Tuning | |||
| 12 | Compression spring | X | 06/1986 | 11330634125 | $1.07 | Shop at ECS Tuning | ||||
| 12 | Compression spring | X | 06/1986 | 11330634125 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Washer | X | 06/1986 | 11330634140 | $1.85 | Shop at ECS Tuning | ||||
| 13 | Washer | X | 06/1986 | 11330634140 | $1.85 | Shop at ECS Tuning | ||||
| 14 | Rocker arm | X | 06/1986 | 11331271833 | $55.08 | Shop at ECS Tuning | ||||
| 14 | Rocker arm | X | 06/1986 | 11331271833 | $55.08 | Shop at ECS Tuning | ||||
| 15 | Spring washer | X | 06/1986 | 11330634135 | $0.30 | Shop at ECS Tuning | ||||
| 15 | Spring washer | X | 06/1986 | 11330634135 | $0.30 | Shop at ECS Tuning | ||||
| 16 | Interm.ring | X | 06/1986 | 11331744353 | Shop at ECS Tuning | |||||
| 16 | Interm.ring | X | 06/1986 | 11331744353 | Shop at ECS Tuning | |||||
| 17 | Screw | X | 06/1986 | 11331744355 | $2.03 | Shop at ECS Tuning | ||||
| 17 | Screw | X | 06/1986 | 11331744355 | $2.03 | Shop at ECS Tuning | ||||
| 18 | Eccentric | X | 06/1986 | 11331744354 | $4.92 | Shop at ECS Tuning | ||||
| 18 | Eccentric | X | 06/1986 | 11331744354 | $4.92 | Shop at ECS Tuning | ||||
| 19 | Washer | X | 06/1986 | 11331258327 | $0.10 | Shop at ECS Tuning | ||||
| 19 | Washer | X | 06/1986 | 11331258327 | $0.10 | Shop at ECS Tuning | ||||
| 20 | Hex nut | M6 | X | 06/1986 | 11331744333 | $0.28 | Shop at ECS Tuning | |||
| 20 | Hex nut | M6 | X | 06/1986 | 11331744333 | $0.28 | Shop at ECS Tuning | |||
| 21 | Intake valve | 47,0/8,00MM | 6 | 06/1987 | 11341705560 | $44.67 | Shop at ECS Tuning | |||
| 21 | Intake valve | 47,0/8,00MM | 6 | 06/1987 | 11341705560 | $44.67 | Shop at ECS Tuning | |||
| 21 | Intake valve w.oversize VA.system +0,1mm | 47,0/8,10MM | 6 | 06/1987 | 11341711534 | $90.68 | ENDED | Shop at ECS Tuning | ||
| 21 | Intake valve w.oversize VA.system +0,1mm | 47,0/8,10MM | 6 | 06/1987 | 11341711534 | $90.68 | ENDED | Shop at ECS Tuning | ||
| 21 | Intake valve w.oversize VA.system +0,2mm | 47,0/8,20MM | 6 | 06/1987 | 11341711535 | $47.43 | ENDED | Shop at ECS Tuning | ||
| 21 | Intake valve w.oversize VA.system +0,2mm | 47,0/8,20MM | 6 | 06/1987 | 11341711535 | $47.43 | ENDED | Shop at ECS Tuning | ||
| 22 | Exhaust valve | 38,0/8,00MM | 6 | 06/1987 | 11341710788 | $77.29 | Shop at ECS Tuning | |||
| 22 | Exhaust valve | 38,0/8,00MM | 6 | 06/1987 | 11341710788 | $77.29 | Shop at ECS Tuning | |||
| 22 | Exh. valve w.oversize VA.system +0,1mm | 38,0/8,10MM | 6 | 06/1987 | 11341711536 | $177.20 | ENDED | Shop at ECS Tuning | ||
| 22 | Exh. valve w.oversize VA.system +0,1mm | 38,0/8,10MM | 6 | 06/1987 | 11341711536 | $177.20 | ENDED | Shop at ECS Tuning | ||
| 22 | Exhaust valve w.oversize VA.system+0,2mm | 38,0/8,20MM | 6 | 06/1987 | 11341711537 | $177.20 | ENDED | Shop at ECS Tuning | ||
| 22 | Exhaust valve w.oversize VA.system+0,2mm | 38,0/8,20MM | 6 | 06/1987 | 11341711537 | $177.20 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 635CSi Timimg gear - rocker arm/valves?
- This technical diagram illustrates the Timimg gear - rocker arm/valves within the Engine group for the 6 Series E24 635CSi produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Rocker arm shaft intake rear (Part #11331274929).
- Which models use the hardware listed in this Timimg gear - rocker arm/valves?
- The hardware and components featured in the Timimg gear - rocker arm/valves are specific to the 6 Series E24 635CSi produced during 1989. These technical specifications ensure that parts like the Rocker arm shaft intake rear (11331274929) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Timimg gear - rocker arm/valves assembly?
- Each item in the Timimg gear - rocker arm/valves corresponds to the numbered list below the illustration. For the 6 Series E24 635CSi, you can identify the Rocker arm shaft intake rear by locating its position on the schematic, which then links to the official BMW part number 11331274929 for the Engine section.
