Timimg gear - rocker arm/valves for BMW 5 Series E28 520i (1987)

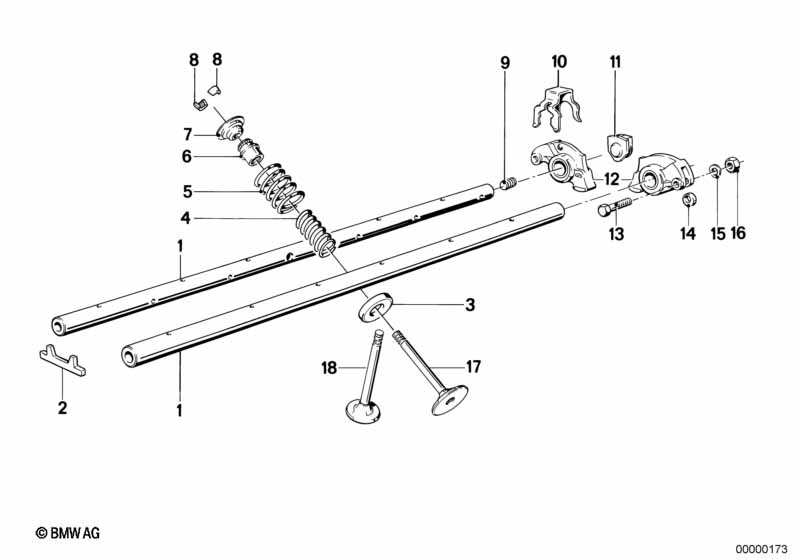

This Timimg gear - rocker arm/valves technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Rocker arm shaft | 2 | 11331274975 | Shop at ECS Tuning | ||||||
| 02 | Bracket | 1 | 11331264677 | $2.55 | ENDED | Shop at ECS Tuning | ||||
| 03 | Spring pocket | X | 09/1985 | 11341706609 | $3.77 | Shop at ECS Tuning | ||||
| 04 | Valve spring | D=20,1MM | X | 11341706584 | $7.88 | Shop at ECS Tuning | ||||
| 05 | Valve spring | D=30,2MM | X | 09/1985 | 11341706583 | $7.88 | Shop at ECS Tuning | |||
| 06 | Repair kit valve seal ring | 1 | 11349059172 | $46.94 | Shop at ECS Tuning | |||||
| 07 | Upper spring plate | X | 09/1985 | 11341706626 | $3.77 | Shop at ECS Tuning | ||||
| 08 | Valve collet | X | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
| 09 | Plug | 4 | 11331266400 | $5.48 | Shop at ECS Tuning | |||||
| 09 | Screw plug | M12X1 | 4 | 11331274923 | $1.62 | Shop at ECS Tuning | ||||
| 10 | Clamp | X | 11331280933 | $1.65 | Shop at ECS Tuning | |||||
| 11 | Blind plug | 4 | 11331264519 | $1.65 | Shop at ECS Tuning | |||||
| 12 | Rocker arm | ZU 1271428 | X | 11331271429 | $33.04 | Shop at ECS Tuning | ||||
| 13 | Screw | X | 11331744355 | $2.03 | Shop at ECS Tuning | |||||
| 14 | Eccentric | X | 11331744354 | $4.92 | Shop at ECS Tuning | |||||
| 15 | Washer | X | 11331258327 | $0.10 | Shop at ECS Tuning | |||||
| 16 | Hex nut | M6 | X | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 17 | Intake valve w.oversize VA.system +0,1mm | 40,0/7,07MM | 6 | 11341710965 | $29.90 | Shop at ECS Tuning | ||||
| 17 | Intake valve w.oversize VA.system +0,2mm | 40,0/7,17MM | 6 | 11341714817 | $34.32 | ENDED | Shop at ECS Tuning | |||
| 18 | Exhaust valve | 34,0/6,96MM | 6 | 11341280643 | $32.52 | Shop at ECS Tuning | ||||
| 18 | Exh. valve w.oversize VA.system +0,1mm | 34,0/7,06MM | 6 | 11341710962 | $177.20 | Shop at ECS Tuning | ||||
| 18 | Exhaust valve w.oversize VA.system+0,2mm | 34,0/7,16MM | 6 | 11341714818 | $177.20 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 520i Timimg gear - rocker arm/valves?
- This technical diagram illustrates the Timimg gear - rocker arm/valves within the Engine group for the 5 Series E28 520i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Rocker arm shaft (Part #11331274975).
- Which models use the hardware listed in this Timimg gear - rocker arm/valves?
- The hardware and components featured in the Timimg gear - rocker arm/valves are specific to the 5 Series E28 520i produced during 1987. These technical specifications ensure that parts like the Rocker arm shaft (11331274975) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Timimg gear - rocker arm/valves assembly?
- Each item in the Timimg gear - rocker arm/valves corresponds to the numbered list below the illustration. For the 5 Series E28 520i, you can identify the Rocker arm shaft by locating its position on the schematic, which then links to the official BMW part number 11331274975 for the Engine section.
