Timing and valve train-camshaft for BMW 5 Series E12 528i (1979)

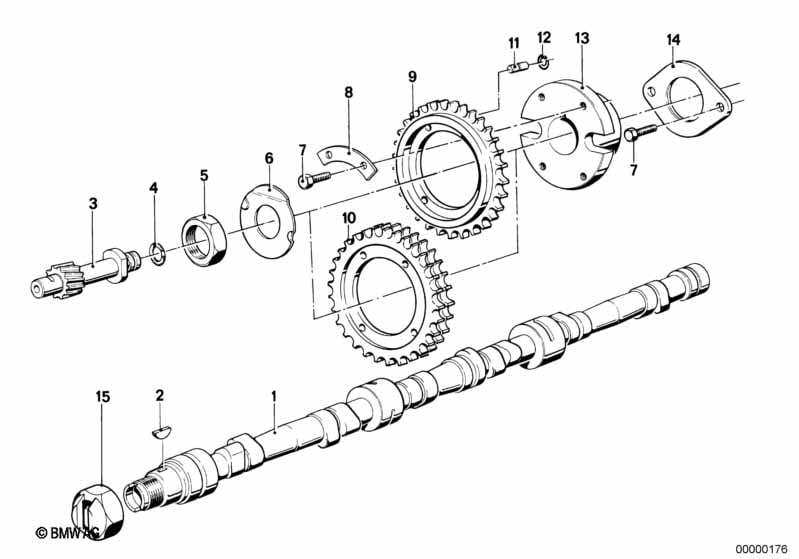

This Timing and valve train-camshaft technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 11311269448 | $569.33 | Shop at ECS Tuning | |||||
| 02 | Woodruff key | 4X5 | 1 | 07119951453 | $0.36 | Shop at ECS Tuning | ||||
| 03 | Distributor drive | 1 | 11311250091 | $56.64 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | 1 | 11311250092 | $1.73 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M30X1,5 | 1 | 11311250096 | $4.40 | Shop at ECS Tuning | ||||
| 06 | Securing plate | 1 | 11311250095 | ENDED, SI 110582004 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X16-8.8-ZNS3 | 6 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Securing plate | 2 | 11311250094 | ENDED, SI 110582004 | Shop at ECS Tuning | |||||
| 10 | Sprocket | 1 | 11/1978 | 11311278990 | $83.27 | ENDED | Shop at ECS Tuning | |||
| 11 | Dowel pin | M6X8,2 | 1 | 11311744356 | $2.23 | ENDED | Shop at ECS Tuning | |||
| 12 | Snap ring | 4,8 | 1 | 11311744357 | $0.13 | Shop at ECS Tuning | ||||
| 13 | Flange | 1 | 11311250058 | $44.75 | Shop at ECS Tuning | |||||
| 14 | Guide plate | 1 | 11311250093 | $15.98 | Shop at ECS Tuning | |||||
| 15 | Hex nut | 1 | 11311284801 | $51.95 | Shop at ECS Tuning |
