Timing cover upper for BMW 3 Series E30 325e (1987)

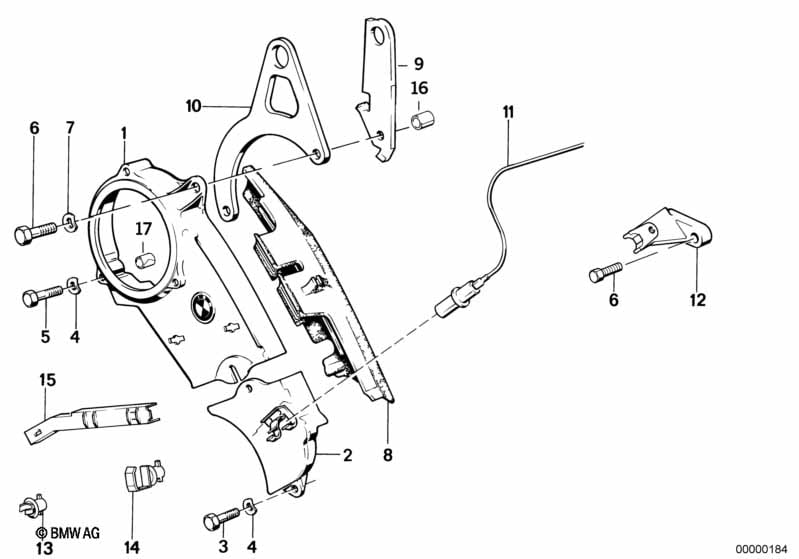

This Timing cover upper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering Upper | 1 | 12/1986 | 11141714863 | $54.10 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M6X22-8.8-ZNS3 | 2 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Hex bolt | M6X60 | 1 | 07119902994 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M6X60 | 1 | 07119902994 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X25 | 1 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Rubber seal | 1 | 11141269557 | $12.31 | Shop at ECS Tuning | |||||
| 10 | Hook | 1 | 09/1985 | 11141706959 | $5.33 | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 11141713173 | $5.68 | ENDED | Shop at ECS Tuning | ||||
| 14 | Holder | 2 | 11141716134 | $0.49 | Shop at ECS Tuning | |||||
| 15 | Cover | 1 | 11141716133 | $3.32 | ENDED | Shop at ECS Tuning | ||||
| 16 | Dowel | D=10,5MM | 1 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 17 | Dowel | D=8,5X13MM | 1 | 11121726244 | $1.07 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
