Timing+valve train-tooth belt/camshaft for BMW 5 Series E28 520i (1987)

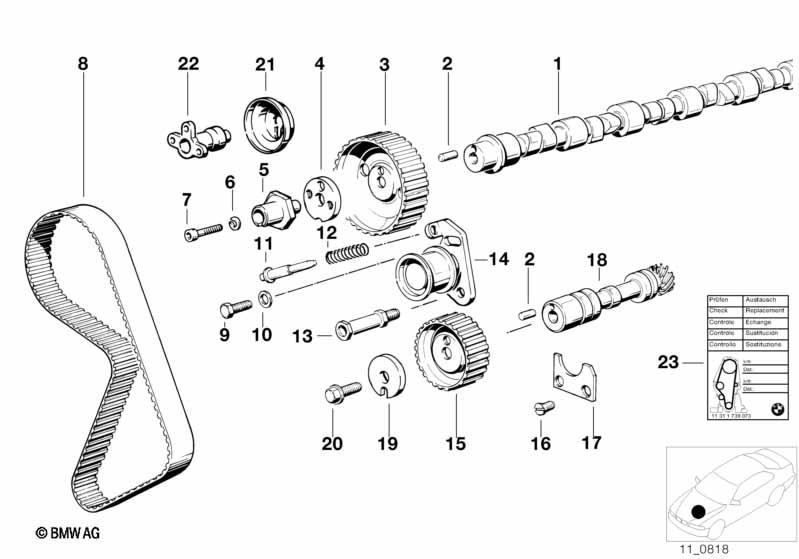

This Timing+valve train-tooth belt/camshaft technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 01 | Camshaft Camshaft | 1 | 11311716139 | $585.21 | Shop at ECS Tuning | |||||
| 03 | Gear wheel,tooth belt | SINTER | 1 | 11311714988 | $54.67 | ENDED | Shop at ECS Tuning | |||
| 09 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | Shop at ECS Tuning | |||||
| 11 | Pin | 1 | 11311280960 | $4.32 | Shop at ECS Tuning | |||||
| 12 | Compression spring | 1 | 11311267746 | $1.09 | Shop at ECS Tuning | |||||
| 13 | Screw | 1 | 11311272433 | $5.13 | Shop at ECS Tuning | |||||
| 14 | Adjusting pulley | 1 | 11311711154 | Shop at ECS Tuning | ||||||
| 15 | Gear wheel,tooth belt | SINTER | 1 | 11311717398 | $32.80 | Shop at ECS Tuning | ||||
| 16 | Countersunk head screw | M6X12 | 2 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 17 | Guide | 1 | 11351280551 | $7.88 | Shop at ECS Tuning | |||||
| 18 | Intermediate shaft | B | 1 | 11/1985 | 11351716095 | $145.96 | Shop at ECS Tuning | |||
| 20 | Lock bolt | M10X35 | 1 | 11/1985 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | ||
| 21 | Cover | 1 | 11311713475 | $2.82 | ENDED | Shop at ECS Tuning | ||||
| 22 | Adapter | 1 | 11311713064 | $20.65 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
