Timing+valve train-tooth belt/camshaft for BMW 5 Series E28 524td (1987)

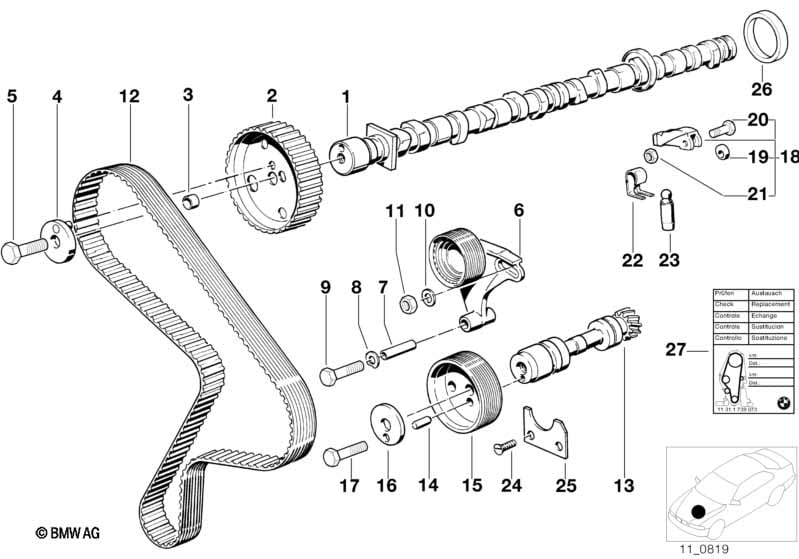

This Timing+valve train-tooth belt/camshaft technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft Camshaft | 1 | 12/1984 | 11312240863 | $585.21 | Shop at ECS Tuning | ||||
| 02 | Gear wheel,tooth belt | 1 | 12/1984 | 11312240226 | $54.67 | Shop at ECS Tuning | ||||
| 03 | Bush | 1 | 11311276675 | $1.90 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Gear wheel,tooth belt | X | 11311275973 | $20.38 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bush | 1 | 11312240383 | $0.60 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Gear wheel,tooth belt | X | 11312240226 | $54.67 | Shop at ECS Tuning | |||||
| 04 | Washer | 1 | 11311714795 | $2.12 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Gear wheel,tooth belt | X | 11311275973 | $20.38 | ENDED | Shop at ECS Tuning | ||||
| -- | Bush | X | 11311276675 | $1.90 | Shop at ECS Tuning | |||||
| 04 | Washer | 1 | 11312240978 | $5.07 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Gear wheel,tooth belt | X | 11312240226 | $54.67 | Shop at ECS Tuning | |||||
| -- | Bush | X | 11312240383 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Hex bolt | M10X30 10.9 | 1 | 07119913842 | $0.82 | Shop at ECS Tuning | ||||
| 06 | Adjusting pulley | 1 | 11312241087 | ENDED | Shop at ECS Tuning | |||||
| 07 | Bush | 1 | 11311279241 | $0.60 | Shop at ECS Tuning | |||||
| 08 | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 10 | Washer | A8,4 | 1 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M8-8-ZNS3 | 1 | 12/1987 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 11 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Tooth belt | CONTI | 1 | 11311279126 | Shop at ECS Tuning | |||||
| 13 | Intermediate shaft | 1 | 11351713430 | $135.93 | Shop at ECS Tuning | |||||
| 14 | Roll pin | 8X26 | 1 | 07119941146 | ENDED | Shop at ECS Tuning | ||||
| 15 | Pulley | 1 | 11311285602 | $33.36 | Shop at ECS Tuning | |||||
| 16 | Washer | 1 | 11311714795 | $2.12 | Shop at ECS Tuning | |||||
| 17 | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ENDED | Shop at ECS Tuning | |||
| 18 | Oscillating lever | X | 11331275878 | $55.08 | Shop at ECS Tuning | |||||
| 19 | Eccentric | X | 11331285610 | $17.76 | Shop at ECS Tuning | |||||
| 20 | Knurled bolt | X | 11332241527 | $4.57 | Shop at ECS Tuning | |||||
| 21 | Hex nut | M6 | X | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 22 | Clip | X | 11331287568 | $1.13 | Shop at ECS Tuning | |||||
| 23 | Ball pin | X | 11121287577 | $7.47 | Shop at ECS Tuning | |||||
| 24 | Countersunk head screw | M6X12 | 2 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 25 | Guide | 1 | 11351280551 | $7.88 | Shop at ECS Tuning | |||||
| 26 | Plain bearing | 54X46X10 | 1 | 11661279954 | $18.98 | Shop at ECS Tuning | ||||
| 27 | Label, Tooth Belt Change | 1 | 11311739073 | $0.45 | Shop at ECS Tuning | |||||
| 27 | Label | CAMSHT DRV BELT | 1 | 01001467809 | $0.25 | ENDED | Shop at ECS Tuning | |||
