Timing and valve train-tooth belt for BMW 3 Series E36 316i (1994)

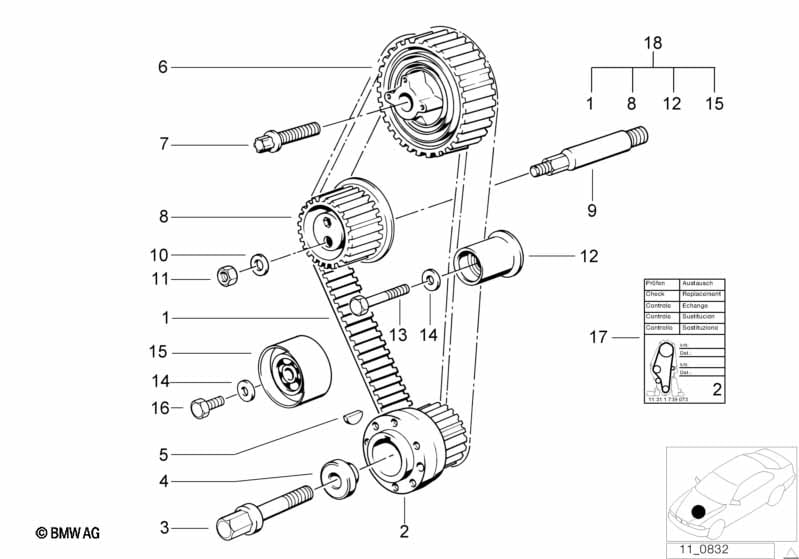

This Timing and valve train-tooth belt technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Service KIT toothed belt | VALUE PARTS | 1 | 11317621021 | Shop at ECS Tuning | |||||
| 02 | Gear wheel,tooth belt | 1 | 11211715205 | $83.88 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M16X1,5X100 12. | 1 | 11211715282 | $6.92 | Shop at ECS Tuning | ||||
| 04 | Washer | 1 | 11231709977 | $8.20 | Shop at ECS Tuning | |||||
| 05 | Woodruff key | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 06 | Gear wheel,tooth belt | 1 | 11311717796 | $54.67 | Shop at ECS Tuning | |||||
| 07 | Torx bolt | M10X35 | 1 | 11311715412 | $5.80 | Shop at ECS Tuning | ||||
| 08 | Adjusting pulley | 1 | 11311727611 | $103.08 | Shop at ECS Tuning | |||||
| 09 | Screw | 1 | 11311734677 | $7.17 | Shop at ECS Tuning | |||||
| 10 | Washer | A8,4 | 1 | 24111690120 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Hex nut | M8-8-ZNS3 | 1 | 09/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 11 | Hex nut | M8-8-ZNNIV SI | 1 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 12 | Roller guide | 1 | 11311708806 | $31.95 | ENDED | Shop at ECS Tuning | ||||
| 13 | Hexagon bolt | M8X65 | 1 | 07119903018 | Shop at ECS Tuning | |||||
| 14 | Washer | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 15 | Deflection pulley | 1 | 11311721264 | $46.81 | SI 111388961 | Shop at ECS Tuning | ||||
| 15 | Deflection pulley | 1 | 11311727141 | Shop at ECS Tuning | ||||||
| 16 | Hex bolt | M8X30 | 1 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Label, Tooth Belt Change | 1 | 11311739073 | $0.45 | Shop at ECS Tuning | |||||
| 18 | Service KIT toothed belt | VALUE PARTS | 1 | 11317621021 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
