Lubrication system/Oil pump with drive for BMW 3 Series E21 320 (1979)

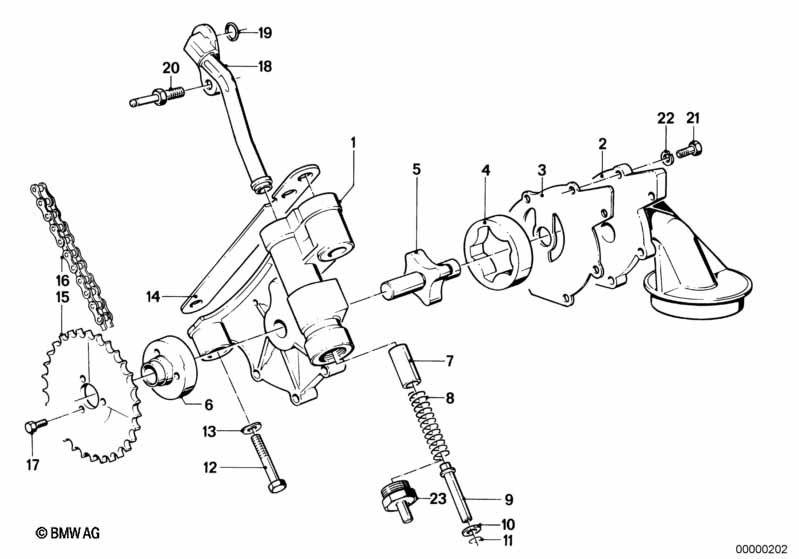

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump housing | 1 | 11411267199 | $57.13 | Shop at ECS Tuning | |||||
| 02 | Oil pump cover | 1 | 11411286492 | $69.38 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411286493 | $452.72 | Shop at ECS Tuning | |||||
| 03 | Intermediate plate | 1 | 11411263218 | $2.62 | Shop at ECS Tuning | |||||
| 04 | Rotor,outer | 1 | 11411250844 | $11.44 | Shop at ECS Tuning | |||||
| 05 | Rotor inner | 1 | 11411267379 | $66.00 | Shop at ECS Tuning | |||||
| 06 | Hub | 1 | 11411256884 | $8.92 | Shop at ECS Tuning | |||||
| 07 | Piston | 1 | 11421271320 | $3.21 | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 11411744324 | $1.27 | Shop at ECS Tuning | |||||
| 09 | Guide tube | 1 | 11411267201 | $34.86 | Shop at ECS Tuning | |||||
| 10 | Washer | 1 | 11411267200 | $0.82 | Shop at ECS Tuning | |||||
| 11 | Lock Ring | 16X1 | 1 | 07119934619 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Spacer plate | 0,100MM | 1 | 11411250427 | $4.62 | Shop at ECS Tuning | ||||
| 14 | Spacer plate | 0,300MM | 1 | 11411250428 | $1.20 | ENDED | Shop at ECS Tuning | |||
| 16 | Chain | 1 | 11411716989 | $28.90 | ENDED | Shop at ECS Tuning | ||||
| 17 | Hex bolt | M6X12-8.8-ZNNIV | 3 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 18 | Pressure hose assy | 1 | 11411256970 | $189.53 | Shop at ECS Tuning | |||||
| 19 | O-ring | 11,7X3 | 2 | 11437794484 | Shop at ECS Tuning | |||||
| 20 | Bolt | 1 | 11411250426 | $4.77 | Shop at ECS Tuning | |||||
| 21 | Hex bolt | M6X25 | 6 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 22 | Spring washer Black | B6-ZN | 9 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 23 | Screw plug | 1 | 11411252072 | $15.50 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Lubrication system/Oil pump with drive?
- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump housing (Part #11411267199).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Oil pump housing (11411267199) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Oil pump housing by locating its position on the schematic, which then links to the official BMW part number 11411267199 for the Engine section.
