Lubrication system/Oil pump with drive for BMW 3 Series E21 320 (1982)
This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Gear wheel | 1 | 11411280880 | $50.63 | Shop at ECS Tuning | |||||
| 10 | Connection piece | 1 | 11411267796 | $14.91 | ENDED | Shop at ECS Tuning | ||||
| 11 | Stopper | 2 | 11411280950 | $0.15 | Shop at ECS Tuning | |||||
| 12 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M8X25 | 3 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 14 | Valve | 1 | 11411265097 | $7.06 | Shop at ECS Tuning | |||||
| 15 | Compression spring | 1 | 11411710796 | Shop at ECS Tuning | ||||||
| 16 | Washer | 1 | 11411265098 | $0.20 | Shop at ECS Tuning | |||||
| 17 | Lock Ring | 26X1,2 DIN472 | 1 | 07119934635 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Lubrication system/Oil pump with drive?

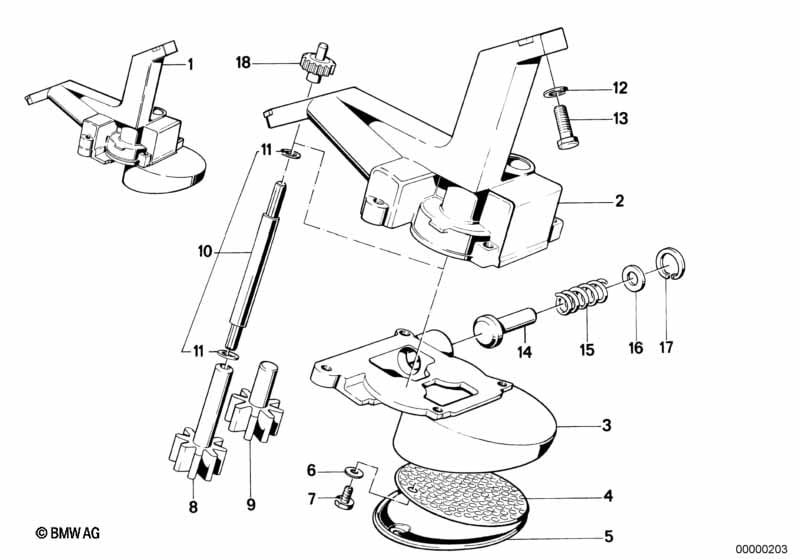

- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 3 Series E21 320 produced during 1982. It provides a detailed exploded view of the components, identifying key parts such as the Washer (Part #07119936439).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 3 Series E21 320 produced during 1982. These technical specifications ensure that parts like the Washer (07119936439) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Washer by locating its position on the schematic, which then links to the official BMW part number 07119936439 for the Engine section.
