Lubrication system/Oil pump with drive for BMW 5 Series E12 518

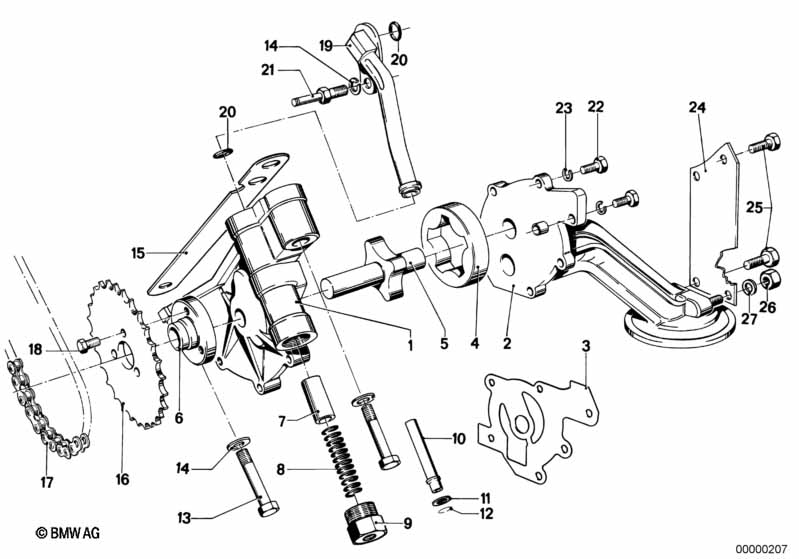

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump housing | 1 | 11411267199 | $57.13 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 02 | Oil pump cover | 1 | 11411250857 | Shop at ECS Tuning | ||||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 03 | Intermediate plate | 1 | 11411263218 | $2.62 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 04 | Rotor,outer | 1 | 11411250844 | $11.44 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 05 | Rotor inner | 1 | 11411267379 | $66.00 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 06 | Hub | 1 | 11411256884 | $8.92 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 07 | Piston | 1 | 11421271320 | $3.21 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 08 | Compression spring | 1 | 11411744324 | $1.27 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 09 | Screw plug | 1 | 11411252072 | $15.50 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 10 | Guide tube | 1 | 11411267201 | $34.86 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 11 | Washer | 1 | 11411267200 | $0.82 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 12 | Lock Ring | 16X1 | 1 | 07119934619 | $0.18 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 14 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Spacer plate | 0,100MM | 1 | 11411250427 | $4.62 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| 15 | Spacer plate | 0,300MM | 1 | 11411250428 | $1.20 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 16 | Sprocket | 1 | 11411273688 | $14.87 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Rotor inner | 1 | 11411267379 | $66.00 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Self-locking hex nut | M10X1 | 1 | 07129922436 | $0.54 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Shim | 12X18X1,7 | 1 | 07119932634 | $0.28 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 17 | Chain | 1 | 11411716989 | $28.90 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M6X10-8.8-ZNS3 | 3 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 19 | Pressure hose assy | 1 | 11411256970 | $189.53 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 20 | O-ring | 11,7X3 | 2 | 11437794484 | Shop at ECS Tuning | |||||
| 21 | Bolt | 1 | 11411250426 | $4.77 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 22 | Hex bolt | M6X25 | 6 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 23 | Spring washer Black | B6-ZN | X | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 24 | Supporting plate | 1 | 11410752140 | $2.69 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
| 25 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 26 | Hex nut | M6-8-ZNS3 | 2 | 07129904876 | $0.16 | Shop at ECS Tuning | ||||
| 26 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 27 | Washer | 2 | 11410752144 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411268779 | ENDED | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411269549 | $375.91 | Shop at ECS Tuning | |||||
