Lubrication system-Oil filter for BMW 5 Series E12 520 (1976)

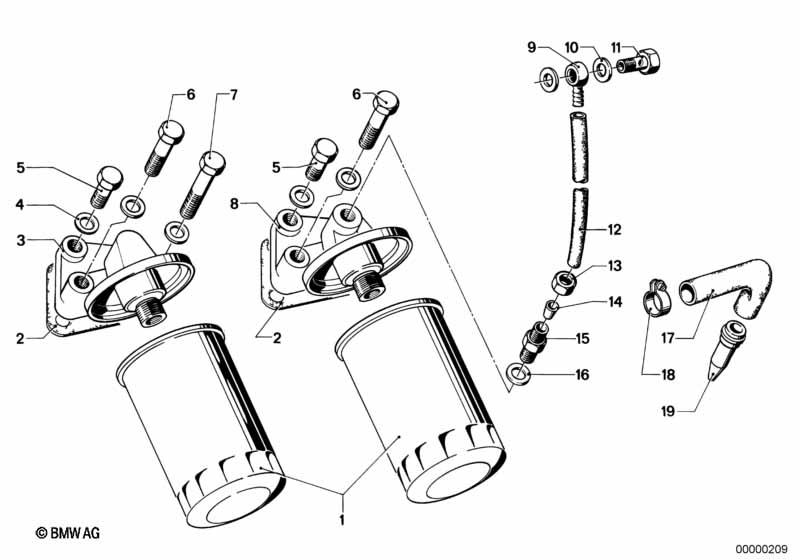

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter | 1 | 11421258038 | Shop at ECS Tuning | ||||||
| 02 | Gasket Asbestos Free | 1 | 11421312607 | $3.13 | Shop at ECS Tuning | |||||
| 03 | Oil filter head | 1 | 11421289128 | $55.47 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X70 | 1 | 07119912800 | $2.18 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M14X75 | 1 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Lubrication system-Oil filter?
- This technical diagram illustrates the Lubrication system-Oil filter within the Engine group for the 5 Series E12 520 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Oil filter (Part #11421258038).
- Which models use the hardware listed in this Lubrication system-Oil filter?
- The hardware and components featured in the Lubrication system-Oil filter are specific to the 5 Series E12 520 produced during 1976. These technical specifications ensure that parts like the Oil filter (11421258038) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system-Oil filter assembly?
- Each item in the Lubrication system-Oil filter corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Oil filter by locating its position on the schematic, which then links to the official BMW part number 11421258038 for the Engine section.
