Lubrication system-Oil filter for BMW 5 Series E12 528i (1981)

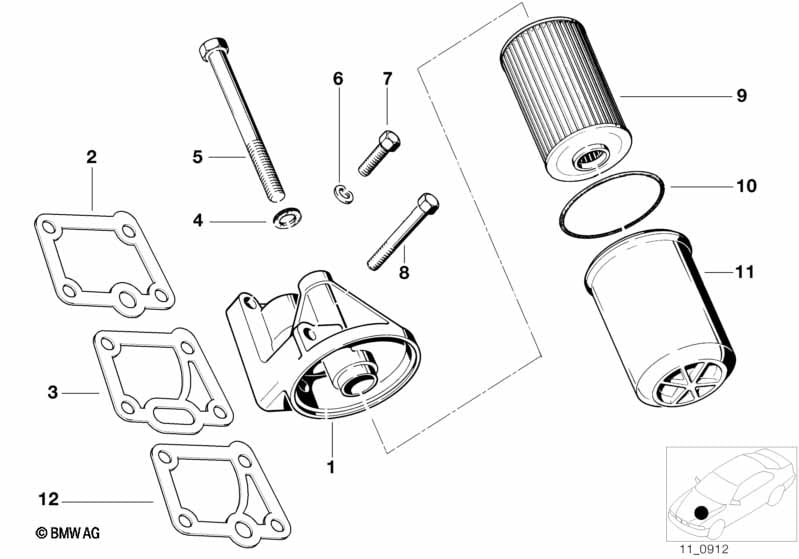

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter head | 1 | 05/1977 | 11421716584 | $122.07 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Gasket Asbestos Free | 1 | 05/1977 | 11421730294 | $6.08 | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 1 | 05/1977 | 11421730264 | $2.47 | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 1 | 05/1977 | 11421722688 | $2.42 | Shop at ECS Tuning | ||||
| 04 | Gasket ring | A10X16-CU | 1 | 05/1977 | 07119963106 | $0.10 | Shop at ECS Tuning | |||
| 05 | Hex bolt | M10X120-8.8-ZN | 1 | 05/1977 | 07119912720 | $1.58 | Shop at ECS Tuning | |||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 05/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M8X30 | 2 | 05/1977 | 07119913664 | $0.47 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M8X80 | 2 | 05/1977 | 07119912558 | $2.89 | Shop at ECS Tuning | |||
| 09 | Set oil-filter element | 1 | 05/1977 | 11429063138 | $12.25 | Shop at ECS Tuning | ||||
| 10 | O-ring | 91X4 | 1 | 05/1977 | 11421741000 | $5.04 | Shop at ECS Tuning | |||
| 11 | Oil filter housing | 1 | 05/1977 | 11421266372 | $70.29 | Shop at ECS Tuning | ||||
