Lubrication system-Oil filter for BMW 7 Series E32 735i (1987)

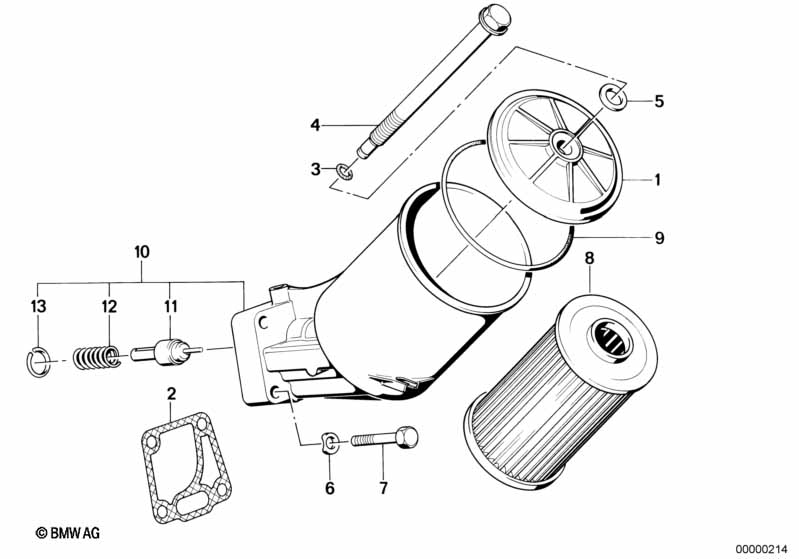

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter cover | 1 | 11421711075 | $26.45 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11421722688 | $2.42 | Shop at ECS Tuning | |||||
| 03 | O-ring | 4,5X1,5 | 1 | 11421711076 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Screw | 1 | 11421711074 | $10.07 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | A10X14-AL | 1 | 07119963075 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M8X40-ZNNIV SI | 4 | 07119905549 | $1.05 | Shop at ECS Tuning | ||||
| 08 | Set oil-filter element | 1 | 11429063138 | $12.25 | Shop at ECS Tuning | |||||
| 09 | O-ring | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 10 | Oil filter housing | 1 | 11421711072 | $287.68 | Shop at ECS Tuning | |||||
| 11 | Control unit purolator | 1 | 11421713347 | $22.88 | Shop at ECS Tuning | |||||
| 11 | Control unit mann & hummel | 1 | 11421713349 | $23.88 | ENDED | Shop at ECS Tuning | ||||
| 12 | Compression spring | 1 | 11421713348 | $2.18 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Control unit purolator | X | 11421713347 | $22.88 | Shop at ECS Tuning | |||||
| 12 | Compression spring | 1 | 11421713350 | $3.21 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Control unit mann & hummel | X | 11421713349 | $23.88 | ENDED | Shop at ECS Tuning | ||||
| 13 | Snap ring | B35 | 1 | 07119933536 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Control unit purolator | X | 11421713347 | $22.88 | Shop at ECS Tuning | |||||
| 13 | Lock Ring | 34X1,5 | 1 | 07119934660 | $0.75 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Control unit mann & hummel | X | 11421713349 | $23.88 | ENDED | Shop at ECS Tuning | ||||
