Lubrication system/Oil pump with drive for BMW 5 Series E34 525i (1988)

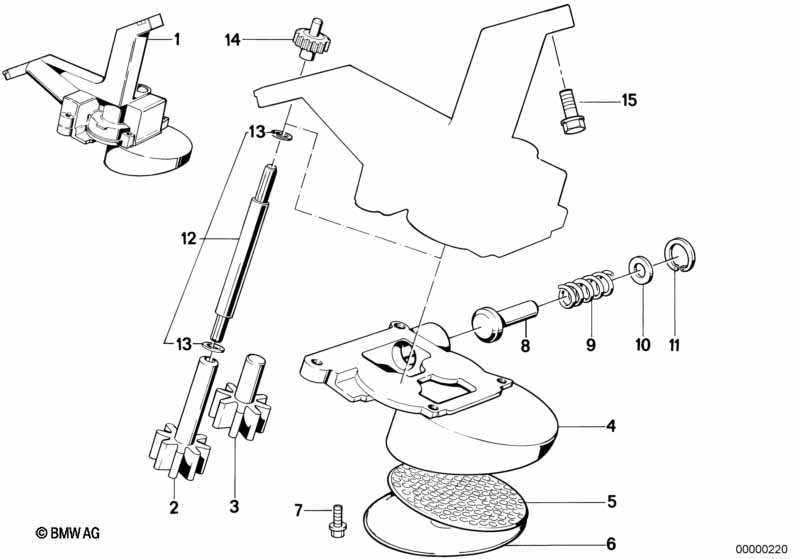

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 11411720898 | $221.11 | Shop at ECS Tuning | |||||
| 03 | Gear wheel | 1 | 11411280880 | $50.63 | Shop at ECS Tuning | |||||
| 04 | Oil pump cover | 1 | 11411273084 | $49.87 | Shop at ECS Tuning | |||||
| 05 | Oil strainer | 1 | 11411706896 | $3.08 | Shop at ECS Tuning | |||||
| 06 | Protective COVER | 1 | 11411720897 | $8.23 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X30-Z3 | 4 | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 08 | Valve | 1 | 11411265097 | $7.06 | Shop at ECS Tuning | |||||
| 09 | Compression spring | 1 | 11411710796 | Shop at ECS Tuning | ||||||
| 10 | Washer | 1 | 11411265098 | $0.20 | Shop at ECS Tuning | |||||
| 11 | Lock Ring | 26X1,2 DIN472 | 1 | 07119934635 | Shop at ECS Tuning | |||||
| 12 | Connection piece | 1 | 11411267796 | $14.91 | ENDED | Shop at ECS Tuning | ||||
| 13 | Stopper | 2 | 11411280950 | $0.15 | Shop at ECS Tuning | |||||
| 14 | Gear wheel | "B" | 1 | 11411713218 | $50.63 | Shop at ECS Tuning | ||||
| 15 | Hex bolt with washer | M8X25-Z3 | 3 | 07119915082 | $0.62 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Lubrication system/Oil pump with drive?
- This technical diagram illustrates the Lubrication system/Oil pump with drive within the Engine group for the 5 Series E34 525i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Oil pump (Part #11411720898).
- Which models use the hardware listed in this Lubrication system/Oil pump with drive?
- The hardware and components featured in the Lubrication system/Oil pump with drive are specific to the 5 Series E34 525i produced during 1988. These technical specifications ensure that parts like the Oil pump (11411720898) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lubrication system/Oil pump with drive assembly?
- Each item in the Lubrication system/Oil pump with drive corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Oil pump by locating its position on the schematic, which then links to the official BMW part number 11411720898 for the Engine section.
