Lubrication system-Oil filter for BMW 3 Series E30 318i (1985)

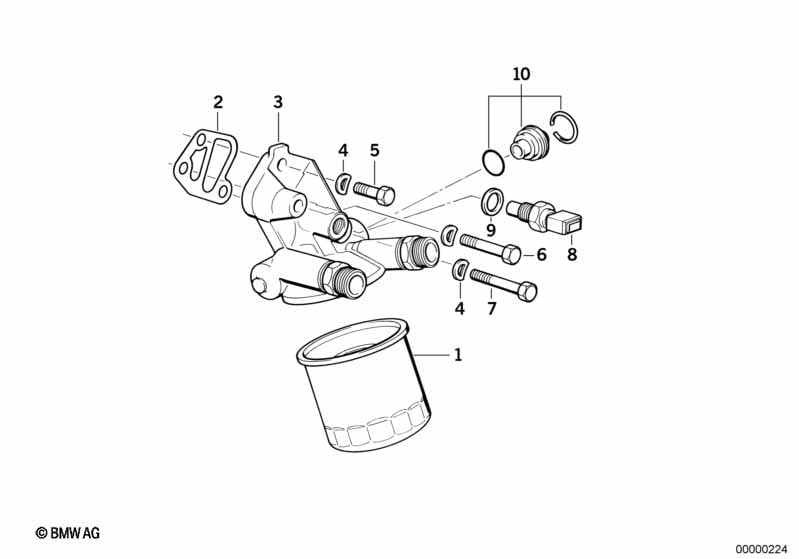

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Oil filter | 30 BAR | 1 | 11421276850 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11421312607 | $3.13 | Shop at ECS Tuning | |||||
| 03 | Oil filter head | 1 | 11421289128 | $55.47 | ENDED | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X50 | 1 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M14X75 | 1 | 07119912870 | $5.38 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
