Crankcase-Ventilation for BMW 3 Series E30 318i (1987)

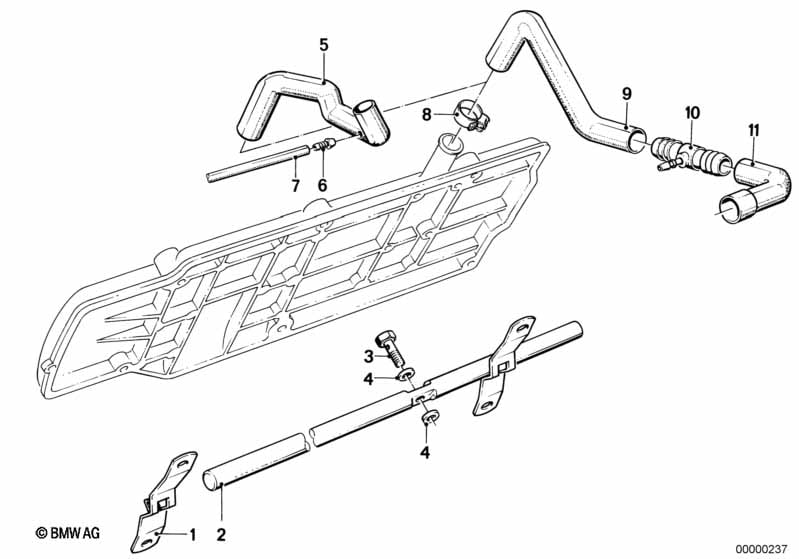

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Clamp | 2 | 11421250567 | $1.05 | Shop at ECS Tuning | |||||
| 02 | Oil pipe | 1 | 11421256682 | $15.37 | Shop at ECS Tuning | |||||
| 03 | Hollow bolt | 1 | 11421738621 | $6.01 | Shop at ECS Tuning | |||||
| 04 | Gasket ring | A8X11,5 | 2 | 11421252343 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Vacuum hose black | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 08 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 09 | Vent hose | 1 | 11151284762 | $19.89 | Shop at ECS Tuning | |||||
| 09 | Vent hose | 1 | 09/1983 | 11151284762 | $19.89 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Crankcase-Ventilation?
- This technical diagram illustrates the Crankcase-Ventilation within the Engine group for the 3 Series E30 318i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Clamp (Part #11421250567).
- Which models use the hardware listed in this Crankcase-Ventilation?
- The hardware and components featured in the Crankcase-Ventilation are specific to the 3 Series E30 318i produced during 1987. These technical specifications ensure that parts like the Clamp (11421250567) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankcase-Ventilation assembly?
- Each item in the Crankcase-Ventilation corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Clamp by locating its position on the schematic, which then links to the official BMW part number 11421250567 for the Engine section.
