Crankcase-Ventilation for BMW 3 Series E30 323i (1986)

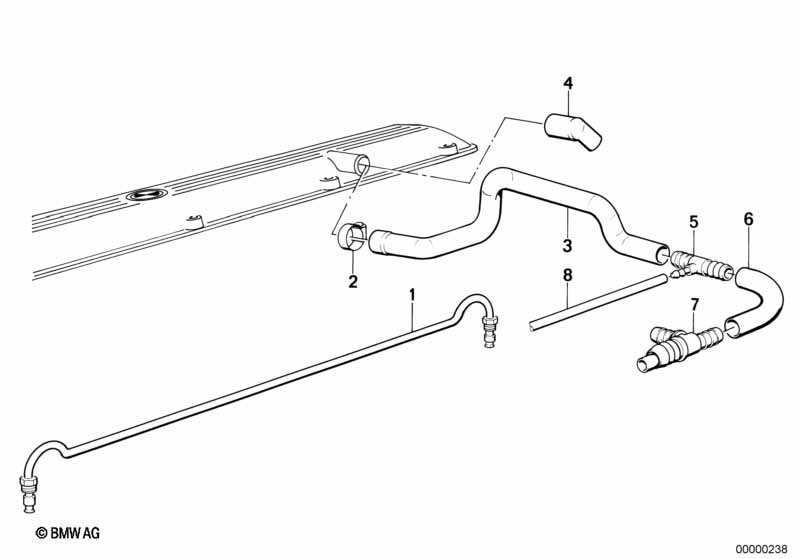

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 11421265376 | $65.62 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Vent hose | 1 | 11151278804 | $27.84 | Shop at ECS Tuning | |||||
| 07 | T-Connector | 1 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 323i Crankcase-Ventilation?
- This technical diagram illustrates the Crankcase-Ventilation within the Engine group for the 3 Series E30 323i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #11421265376).
- Which models use the hardware listed in this Crankcase-Ventilation?
- The hardware and components featured in the Crankcase-Ventilation are specific to the 3 Series E30 323i produced during 1986. These technical specifications ensure that parts like the Pipe (11421265376) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankcase-Ventilation assembly?
- Each item in the Crankcase-Ventilation corresponds to the numbered list below the illustration. For the 3 Series E30 323i, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 11421265376 for the Engine section.
