Crankcase-Ventilation for BMW 3 Series E30 325ix (1990)

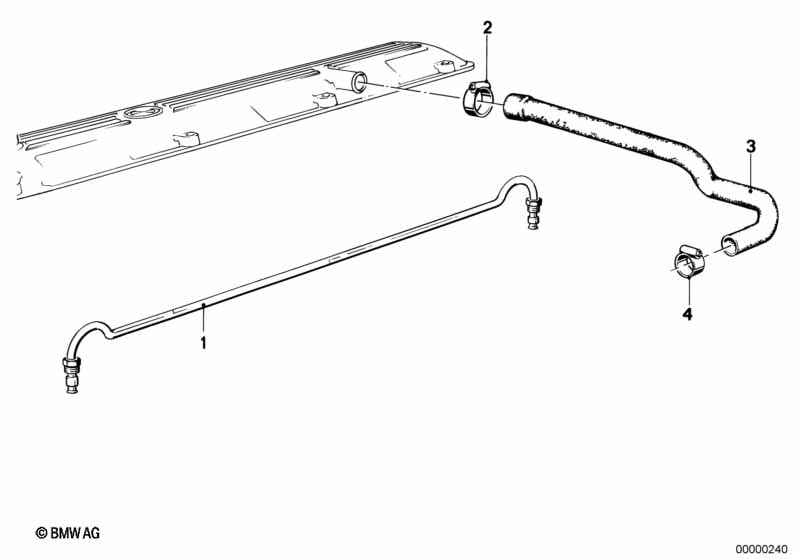

This Crankcase-Ventilation technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | 1 | 11421265376 | $65.62 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Vent hose | 1 | 11151708801 | $15.37 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Crankcase-Ventilation?
- This technical diagram illustrates the Crankcase-Ventilation within the Engine group for the 3 Series E30 325ix produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Pipe (Part #11421265376).
- Which models use the hardware listed in this Crankcase-Ventilation?
- The hardware and components featured in the Crankcase-Ventilation are specific to the 3 Series E30 325ix produced during 1990. These technical specifications ensure that parts like the Pipe (11421265376) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Crankcase-Ventilation assembly?
- Each item in the Crankcase-Ventilation corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Pipe by locating its position on the schematic, which then links to the official BMW part number 11421265376 for the Engine section.
