Dipstick for BMW 5 Series E28 528e (1987)

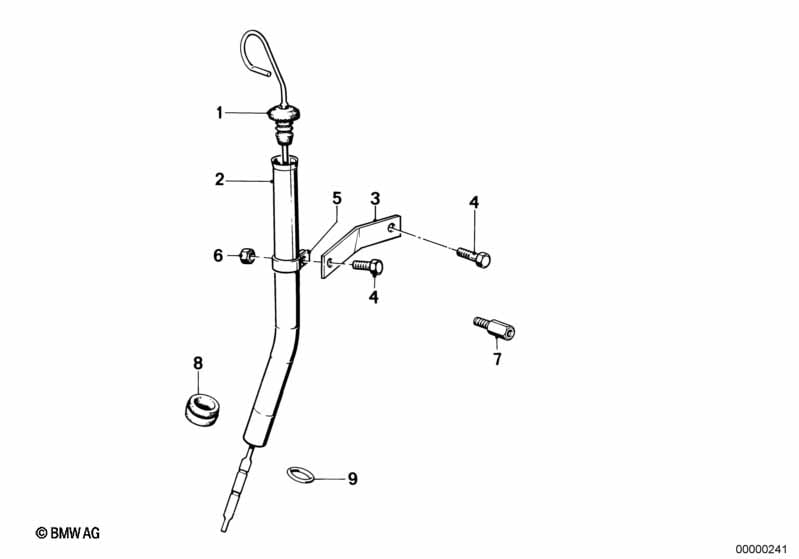

This Dipstick technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dipstick | L=605MM | 1 | 11431286991 | $14.41 | ENDED | Shop at ECS Tuning | |||
| 01 | Dipstick | L=533,5MM | 1 | 11431718863 | $15.30 | Shop at ECS Tuning | ||||
| 02 | Guide tube | L=387,4MM | 1 | 11111705786 | $42.11 | Shop at ECS Tuning | ||||
| 03 | Bracket | 1 | 11431277085 | $0.56 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Clamp | 1 | 11431258342 | $1.04 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Dipstick?
- This technical diagram illustrates the Dipstick within the Engine group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Dipstick (Part #11431286991).
- Which models use the hardware listed in this Dipstick?
- The hardware and components featured in the Dipstick are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Dipstick (11431286991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Dipstick assembly?
- Each item in the Dipstick corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Dipstick by locating its position on the schematic, which then links to the official BMW part number 11431286991 for the Engine section.
