Dipstick for BMW 3 Series E30 320i (1992)

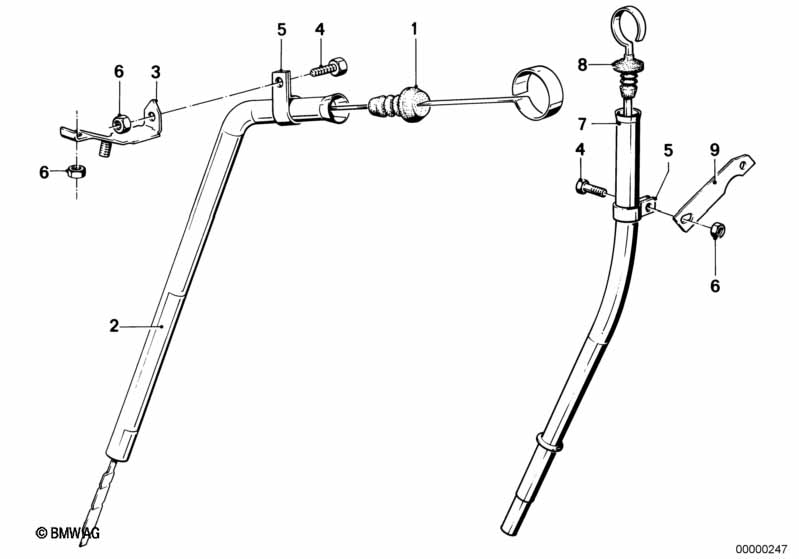

This Dipstick technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Clamp | 1 | 11431258342 | $1.04 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Guide tube | L=387,4MM | 1 | 11111705786 | $42.11 | Shop at ECS Tuning | ||||
| 08 | Dipstick | L=533,5MM | 1 | 11431718863 | $15.30 | Shop at ECS Tuning | ||||
| 09 | Holder | 1 | 09/1987 | 11431720566 | $1.12 | Shop at ECS Tuning | ||||
