Lubrication system/Oil pump with drive for BMW 8 Series E31 850Ci (1991)

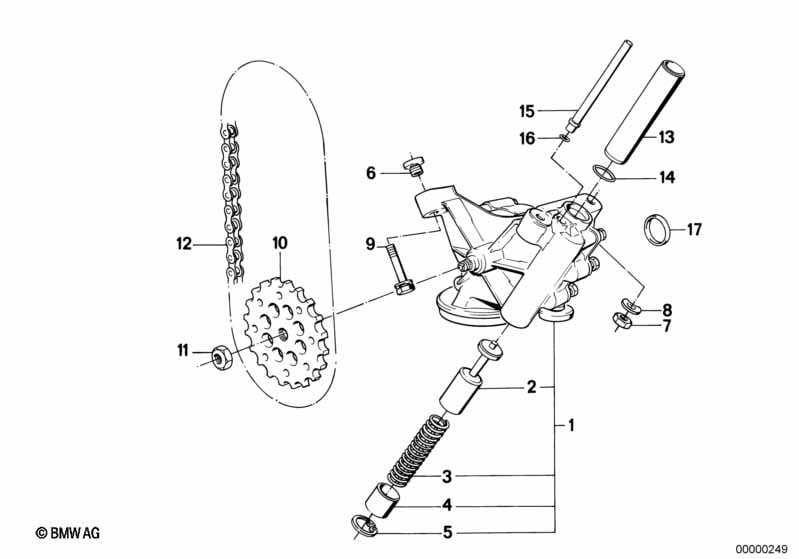

This Lubrication system/Oil pump with drive technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pump | 1 | 09/1992 | 11411401456 | $1359.05 | Shop at ECS Tuning | ||||
| 01 | Oil pump | 1 | 11411401456 | $1359.05 | Shop at ECS Tuning | |||||
| 02 | Piston | 1 | 09/1992 | 11411729141 | $10.13 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Oil pump | X | 09/1992 | 11411401456 | $1359.05 | Shop at ECS Tuning | ||||
| -- | Oil pump | X | 09/1992 | 11411733606 | $462.20 | ENDED | Shop at ECS Tuning | |||
| 02 | Piston | 1 | 09/1992 | 11411725447 | $10.13 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 09/1992 | 11411725646 | $398.91 | ENDED | Shop at ECS Tuning | |||
| 03 | Compression spring | 1 | 11411708456 | $9.86 | Shop at ECS Tuning | |||||
| 04 | Sleeve | 1 | 11411729813 | $1.03 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Oil pump | X | 11411401456 | $1359.05 | Shop at ECS Tuning | |||||
| -- | Oil pump | X | 11411733606 | $462.20 | ENDED | Shop at ECS Tuning | ||||
| 04 | Sleeve | 1 | 09/1992 | 11411708457 | $5.69 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Oil pump | X | 09/1992 | 11411725646 | $398.91 | ENDED | Shop at ECS Tuning | |||
| 05 | Lock Ring | 20X1 | 1 | 07119934624 | $1.78 | Shop at ECS Tuning | ||||
| 06 | Guide support | 1 | 02/1993 | 11411725585 | $4.42 | Shop at ECS Tuning | ||||
| 06 | Guide support | 1 | 11411733963 | $3.37 | Shop at ECS Tuning | |||||
| 07 | Self-locking hex nut | M8 | 2 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M8X40-Z1-ZNS3 | 1 | 07119902927 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Sprocket | 1 | 11411707147 | $40.87 | Shop at ECS Tuning | |||||
| 11 | Hex nut | M10X1 FLACH | 1 | 07119901301 | $0.33 | Shop at ECS Tuning | ||||
| 12 | Chain | 1 | 11417576916 | $30.08 | Shop at ECS Tuning | |||||
| 13 | Oil pipe | 1 | 11421288909 | $3.42 | Shop at ECS Tuning | |||||
| 14 | O-ring | 21X2,4MM | 2 | 11421288890 | $1.37 | Shop at ECS Tuning | ||||
| 15 | Oil pipe | 1 | 11421713587 | $2.86 | Shop at ECS Tuning | |||||
| 16 | O-ring | 6,0X2,5 | 1 | 11421713597 | $1.29 | Shop at ECS Tuning | ||||
| 17 | Gasket ring | 1 | 11131725182 | $2.92 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
