Waterpump - Thermostat for BMW 8 Series E31 850Ci (1991)

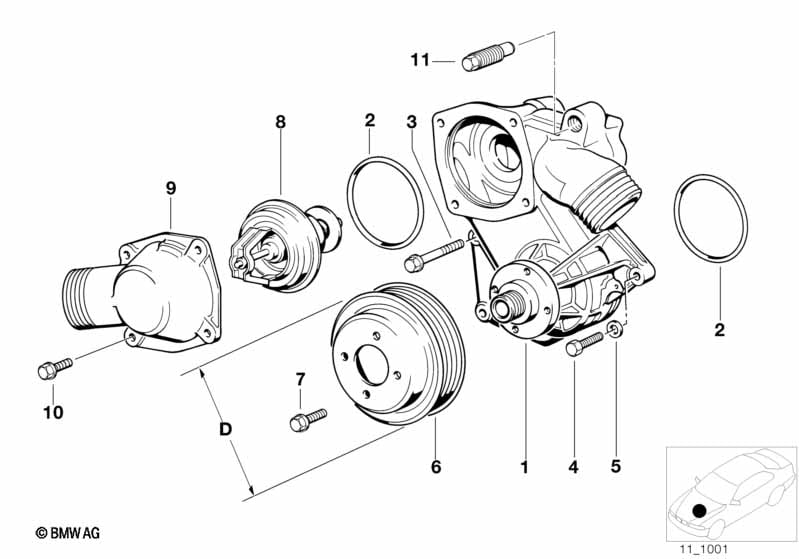

This Waterpump - Thermostat technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water pump | 1 | 11510004162 | Shop at ECS Tuning | ||||||
| 01 | Water pump | 1 | 11510004162 | Shop at ECS Tuning | ||||||

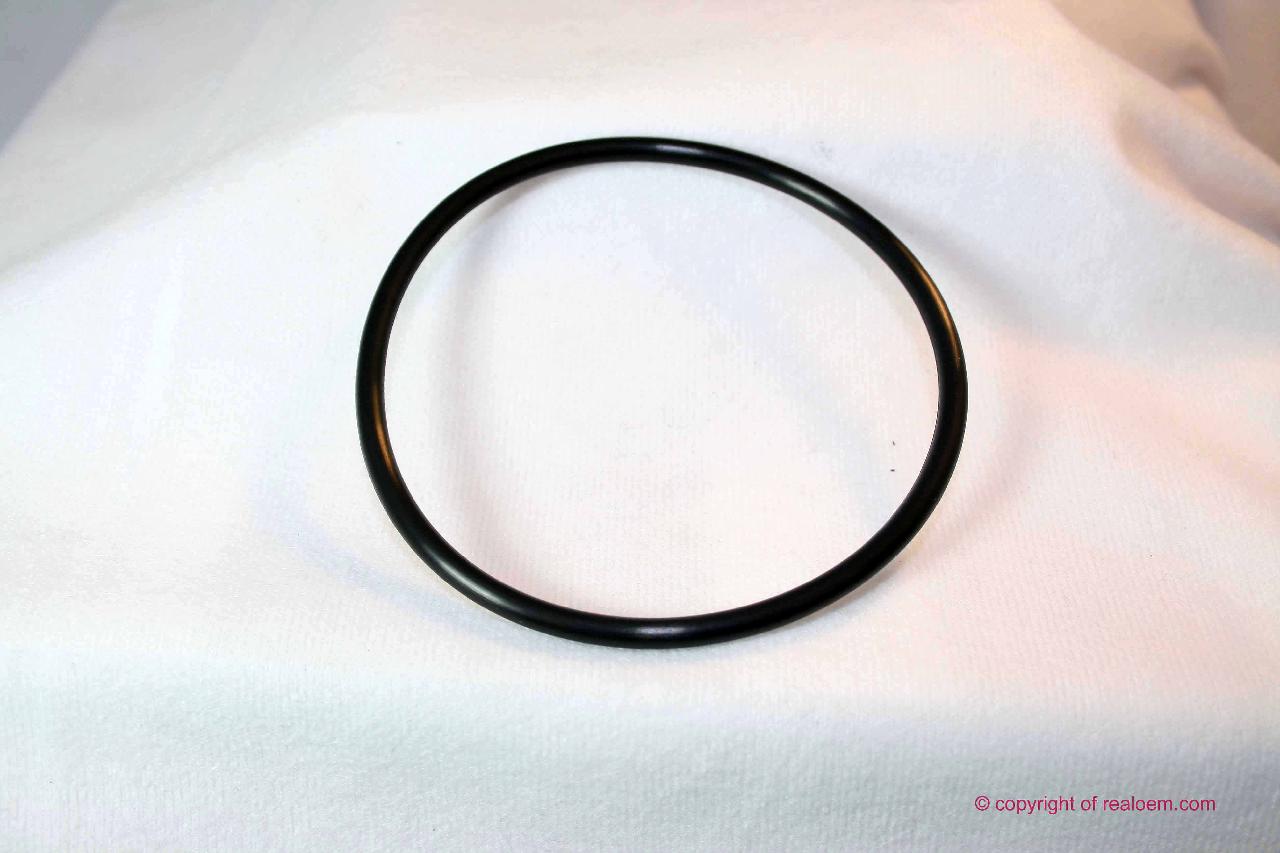

| 02 | Gasket ring | 4,0X76,5MM | 2 | 11511705408 | $4.12 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M6X65 | 4 | 07119912357 | $0.71 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | 2 | 11511710171 | $0.25 | Shop at ECS Tuning | |||||
| 06 | Pulley | D=109MM | 1 | 11511709872 | $108.38 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Pulley | D=97MM | 1 | 11511731905 | $186.83 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia or Hot-climate version |
L810A=Yes S823A=Yes |
|||||||||
| 06 | Pulley | D=97MM | 1 | 11511731905 | $186.83 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X10-Z1 | 4 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Thermostat | 85CEL | 1 | 11531729720 | $113.91 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia |
L810A=Yes |
|||||||||
| 08 | Thermostat | 85CEL | 1 | 11531729720 | $113.91 | Shop at ECS Tuning | ||||
| 08 | Thermostat | 70CEL | 1 | 11531731486 | $66.65 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 08 | Thermostat | 85CEL | 1 | 11531729720 | $113.91 | Shop at ECS Tuning | ||||
| 08 | Thermostat | 70CEL | 1 | 11531731486 | $66.65 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover | 1 | 11531710493 | $34.52 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X22-8.8-ZNS3 | 4 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
