Cooling system-water pump for BMW 5 Series E28 528e (1987)

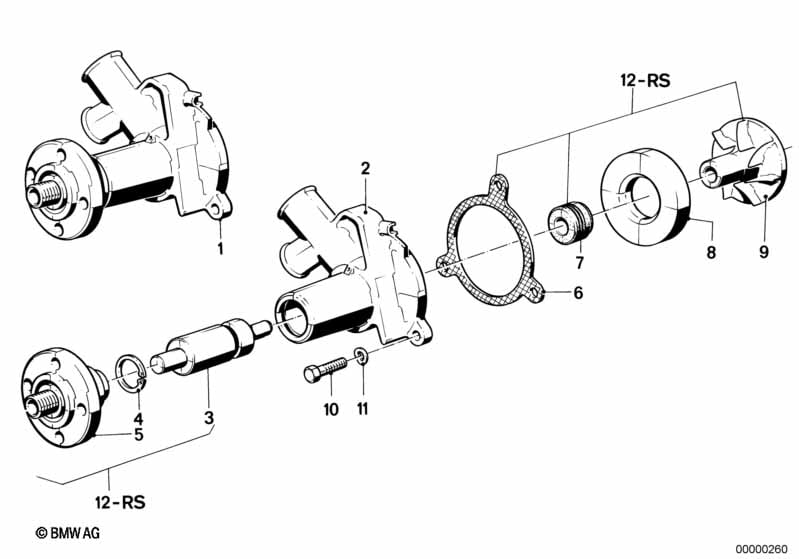

This Cooling system-water pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water pump | 1 | 09/1987 | 11519070758 | Shop at ECS Tuning | |||||
| 02 | Waterpump housing | 1 | 11511267188 | ENDED | Shop at ECS Tuning | |||||
| 03 | Water pump bearing | 1 | 11511706676 | ENDED | Shop at ECS Tuning | |||||
| 04 | Lock Ring | 30X1,2 | 1 | 07119934645 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Flange | 1 | 11511277387 | $43.25 | ENDED | Shop at ECS Tuning | ||||

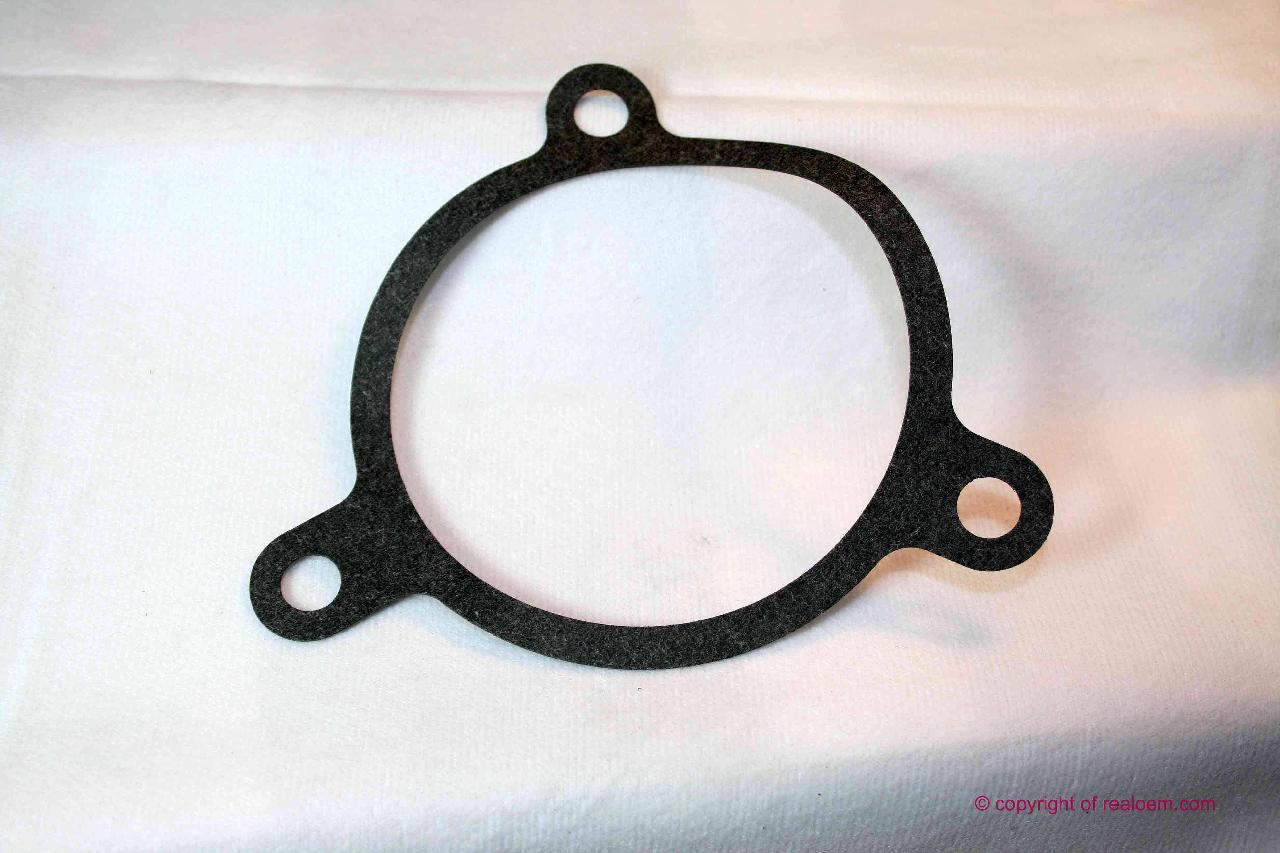

| 06 | Gasket Asbestos Free | 1 | 11511722677 | $2.10 | ENDED | Shop at ECS Tuning | ||||
| 07 | Slip-ring seal | 1 | 11411741870 | $21.34 | Shop at ECS Tuning | |||||
| 07 | Slip-ring seal | 1 | 11411741870 | $21.34 | Shop at ECS Tuning | |||||
| 07 | Slip-ring seal | 1 | 11511717965 | $26.00 | ENDED | Shop at ECS Tuning | ||||
| 08 | Ring cover | 1 | 11511267189 | ENDED | Shop at ECS Tuning | |||||
| 09 | Rotor | 1 | 11511706589 | $18.13 | ENDED | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Water pump | X | 11511711492 | $86.70 | ENDED | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X20-ZNNIV SI | 3 | 07119903039 | Shop at ECS Tuning | |||||
| 11 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Repair kit water pump | 1 | 11511706625 | ENDED | Shop at ECS Tuning | |||||
