Cooling system-water pump for BMW 5 Series E34 535i (1993)

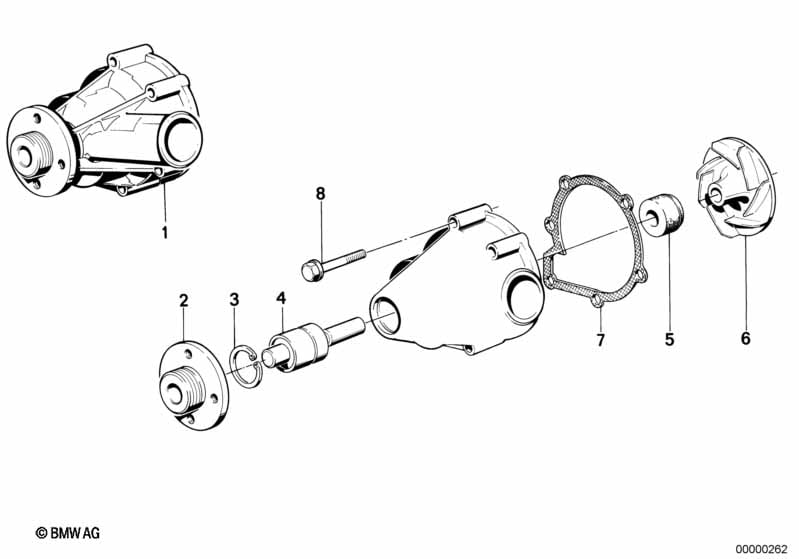

This Cooling system-water pump technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water pump | 1 | 11519070760 | Shop at ECS Tuning | ||||||
| 07 | Gasket Asbestos Free | 1 | 11511265654 | $1.71 | ENDED | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X35-U1-8.8 | 6 | 07119904589 | $0.47 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Cooling system-water pump?
- This technical diagram illustrates the Cooling system-water pump within the Engine group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Water pump (Part #11519070760).
- Which models use the hardware listed in this Cooling system-water pump?
- The hardware and components featured in the Cooling system-water pump are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Water pump (11519070760) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-water pump assembly?
- Each item in the Cooling system-water pump corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Water pump by locating its position on the schematic, which then links to the official BMW part number 11519070760 for the Engine section.
