Cooling system-fan/fan coupling for BMW 3 Series E30 M3 (1990)

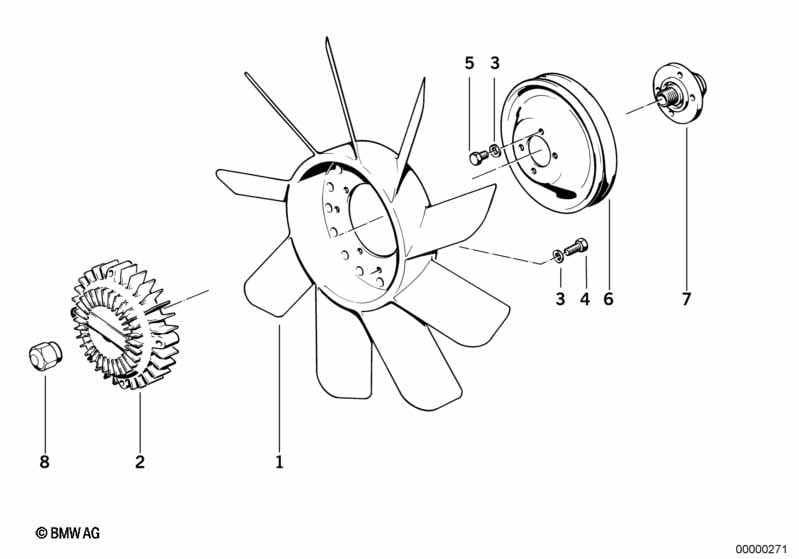

This Cooling system-fan/fan coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 05 | Hex bolt | M6X10-8.8-ZNS3 | 4 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Pulley | D=113MM B=9,7 | 1 | 11511277728 | $52.97 | ENDED | Shop at ECS Tuning | |||
| 07 | Flange | 1 | 11511309604 | $31.81 | Shop at ECS Tuning | |||||
| 08 | Screw plug | 1 | 11511310640 | $7.70 | Shop at ECS Tuning |
