Radiator/frame for BMW 3 Series E21 320i (1977)

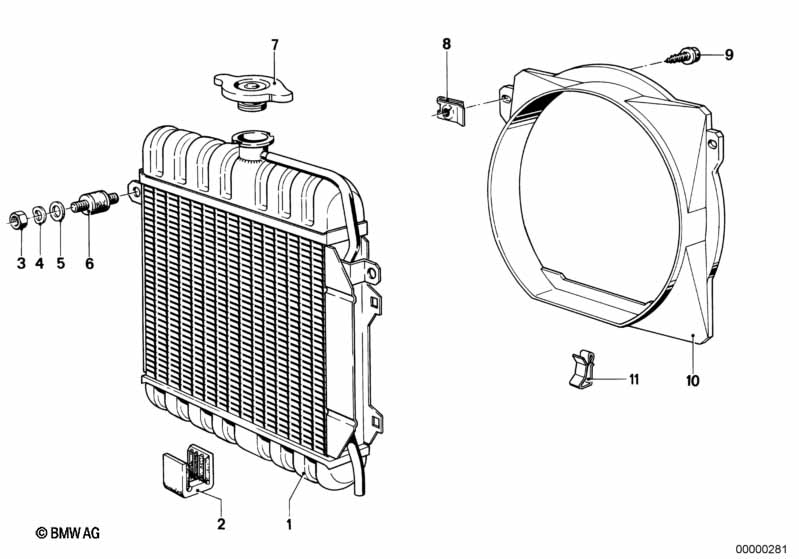

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator | 1 | 17111115998 | Shop at ECS Tuning | ||||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Radiator | 1 | 17111114576 | $765.48 | Shop at ECS Tuning | |||||
| 02 | Base | 2 | 17111113698 | $10.99 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Spring washer Black | B6-ZN | 4 | 12/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 04 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Rubber Mounting | 2 | 17111113699 | $5.18 | Shop at ECS Tuning | |||||
| 07 | Radiator cap | D=60 MM 1,0 BAR | 1 | 17111100848 | $17.06 | Shop at ECS Tuning | ||||
| 08 | Body nut | B6,5 | 2 | 32412482060 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 09 | Sheet metal screw | B6,5X16 | 2 | 12138530118 | $0.40 | ENDED | Shop at ECS Tuning | |||
| 10 | Fan shroud | 1 | 17111116513 | $39.97 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 10 | Fan shroud | 1 | 17111116512 | $39.97 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 17111115041 | $1.05 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320i Radiator/frame?
- This technical diagram illustrates the Radiator/frame within the Engine group for the 3 Series E21 320i produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Radiator (Part #17111115998).
- Which models use the hardware listed in this Radiator/frame?
- The hardware and components featured in the Radiator/frame are specific to the 3 Series E21 320i produced during 1977. These technical specifications ensure that parts like the Radiator (17111115998) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Radiator/frame assembly?
- Each item in the Radiator/frame corresponds to the numbered list below the illustration. For the 3 Series E21 320i, you can identify the Radiator by locating its position on the schematic, which then links to the official BMW part number 17111115998 for the Engine section.
