Cooling system-thermostat/water hoses for BMW 3 Series E21 323i (1979)

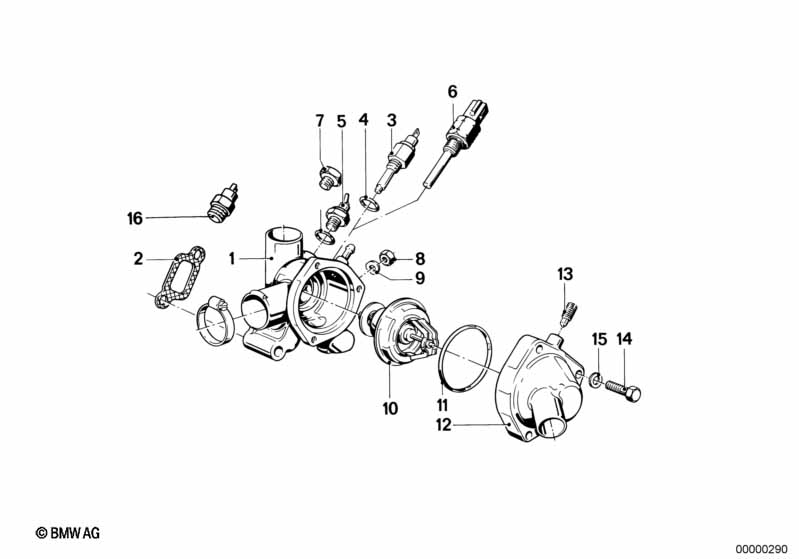

This Cooling system-thermostat/water hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thermostat housing | 1 | 11531268936 | $75.68 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11531722692 | $3.62 | Shop at ECS Tuning | |||||
| 03 | Engine coolant temp sensor | 1 | 62111268355 | Shop at ECS Tuning | ||||||
| 04 | Gasket ring | A14X18-AL | X | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 05 | Thermovalve | 80CEL | 1 | 09/1981 | 11741266922 | $36.27 | Shop at ECS Tuning | |||
| 05 | Thermovalve | 20/13CEL | 1 | 11741264536 | ENDED | Shop at ECS Tuning | ||||
| 06 | Temperature-time switch | 35CEL 12S | 1 | 13621267454 | Shop at ECS Tuning | |||||
| 07 | Screw plug | AM14X1,5 | X | 07119909704 | Shop at ECS Tuning | |||||
| 08 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 09 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Thermostat | 80 GRAD | 1 | 11531265085 | $44.56 | Shop at ECS Tuning | ||||
| 11 | O-ring | 60X3,5 | 1 | 11531265084 | $2.10 | Shop at ECS Tuning | ||||
| 12 | Cover | 1 | 11531265059 | $20.68 | Shop at ECS Tuning | |||||
| 13 | Vent screw | M8 | 1 | 11531275881 | $3.47 | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M6X25 | 3 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 15 | Spring washer Black | B6-ZN | 3 | 10/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 15 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 15 | Wave washer | B6-ZNS3 | 3 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
