Cooling system-thermostat/water hoses for BMW 3 Series E21 320 (1979)

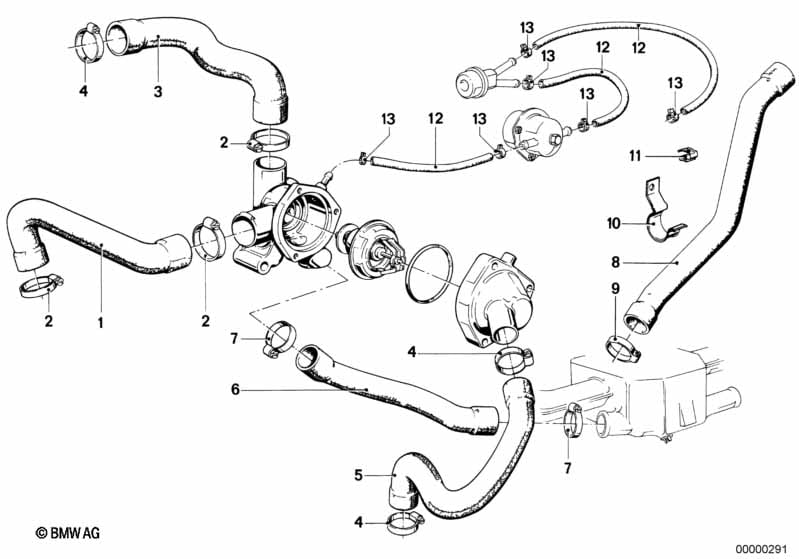

This Cooling system-thermostat/water hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 11531265448 | $25.80 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L42-48 | 4 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Water hose | 1 | 08/1979 | 11531276385 | $19.84 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L37-43 | 2 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 05 | Water hose | 1 | 08/1979 | 11531278925 | $34.57 | Shop at ECS Tuning | ||||
| 06 | Water hose | 1 | 11531265486 | $15.65 | Shop at ECS Tuning | |||||
| 07 | Hose clamp | L32-38 | 2 | 07129952115 | $1.27 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 320 Cooling system-thermostat/water hoses?
- This technical diagram illustrates the Cooling system-thermostat/water hoses within the Engine group for the 3 Series E21 320 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Water hose (Part #11531265448).
- Which models use the hardware listed in this Cooling system-thermostat/water hoses?
- The hardware and components featured in the Cooling system-thermostat/water hoses are specific to the 3 Series E21 320 produced during 1979. These technical specifications ensure that parts like the Water hose (11531265448) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-thermostat/water hoses assembly?
- Each item in the Cooling system-thermostat/water hoses corresponds to the numbered list below the illustration. For the 3 Series E21 320, you can identify the Water hose by locating its position on the schematic, which then links to the official BMW part number 11531265448 for the Engine section.
