Transmission oil cooling for BMW 5 Series E12 520 (1976)

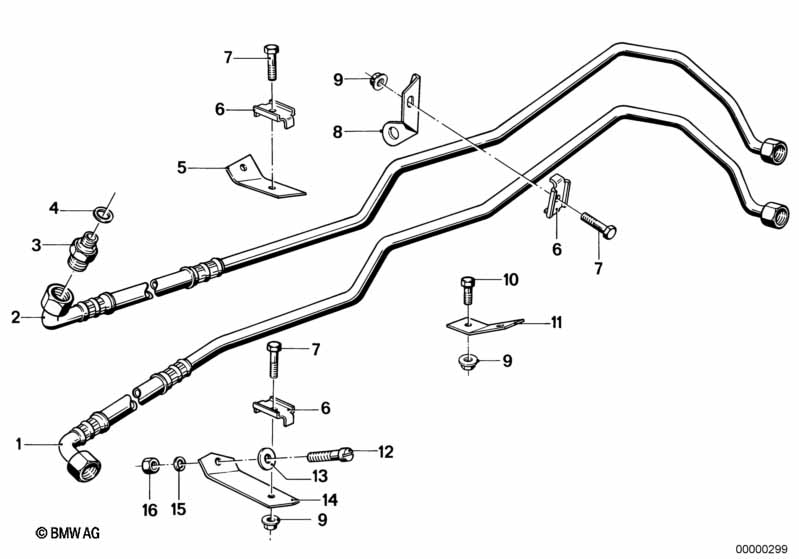

This Transmission oil cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil pipe | 1 | 07/1975 | 17221116934 | $59.99 | ENDED | Shop at ECS Tuning | |||
| 02 | Return pipe | 1 | 07/1975 | 17221116933 | $67.52 | ENDED | Shop at ECS Tuning | |||
| 03 | Threaded pipe joint | M14-M18X1,5 | 2 | 07/1975 | 17221116672 | $9.12 | Shop at ECS Tuning | |||
| 04 | Gasket ring | A14X18-CU | 2 | 07/1975 | 07119963201 | $0.18 | Shop at ECS Tuning | |||
| 06 | Clamp | 3 | 07/1975 | 17221116130 | $2.85 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X25 | 3 | 07/1975 | 07119913589 | $0.62 | Shop at ECS Tuning | |||
| 08 | Bow | 1 | 07/1975 | 17221116952 | ENDED | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | 4 | 07/1975 | 64509123157 | $0.70 | Shop at ECS Tuning | |||
| 10 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07/1975 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 11 | Support | 1 | 07/1975 | 17221116954 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fillister-head screw | M8X30-8.8-ZNS | 1 | 07/1975 | 07119901025 | $0.47 | Shop at ECS Tuning | |||
| 13 | Washer | A8,4 | 1 | 07/1975 | 33311108205 | $0.16 | Shop at ECS Tuning | |||
| 14 | Bow | 1 | 07/1975 | 17221118182 | $0.57 | ENDED | Shop at ECS Tuning | |||
| 15 | Wave washer | 8,4X15-ZNS3 | 1 | 07/1975 | 07119904115 | $0.09 | Shop at ECS Tuning | |||
| 16 | Hex nut | M8-8-ZNNIV SI | 1 | 07/1975 | 07119905515 | $0.16 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
